Rear Side Door Window Regulator Replacement

Courtesy of GENERAL MOTORS COMPANY

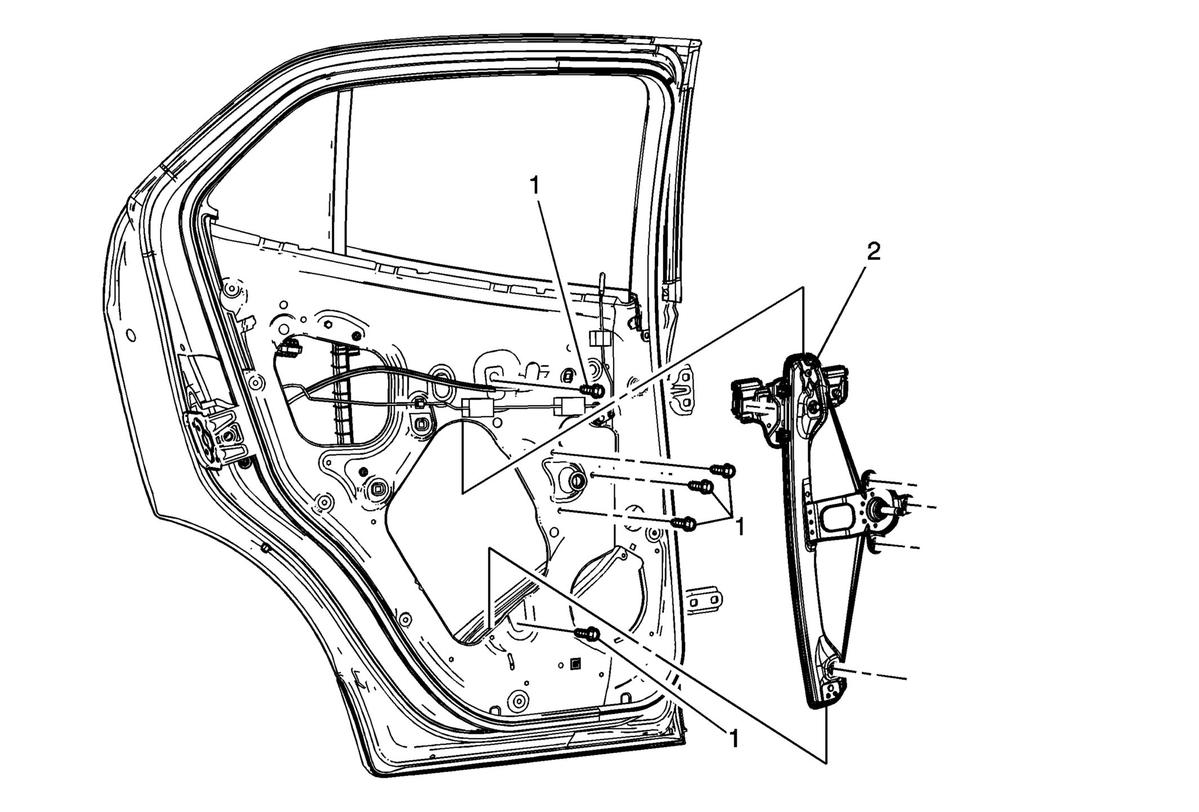

Callout	Component Name
Preliminary Procedures  Remove the rear side door window from the window regulator guide nuts. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Manual Window Regulator Bolts (Qty: 5) CAUTION: Refer to Fastener Caution . Procedure  Remove the rear side door water deflector. Tighten  11 N.m (97 lb in)
2	Rear Side Door Manual Window Regulator Procedure  Inspect the door window for proper operation before installing the door trim.
