Preliminary Procedures
- Remove both front floor console extension panels. Refer to Front Floor Console Extension Replacement - Left Side , and Front Floor Console Extension Replacement - Right Side .
- Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Encore) .
- Remove the front floor console parking brake lever opening cover. Refer to Front Floor Console Parking Brake Lever Opening Cover Replacement (Encore) .
|

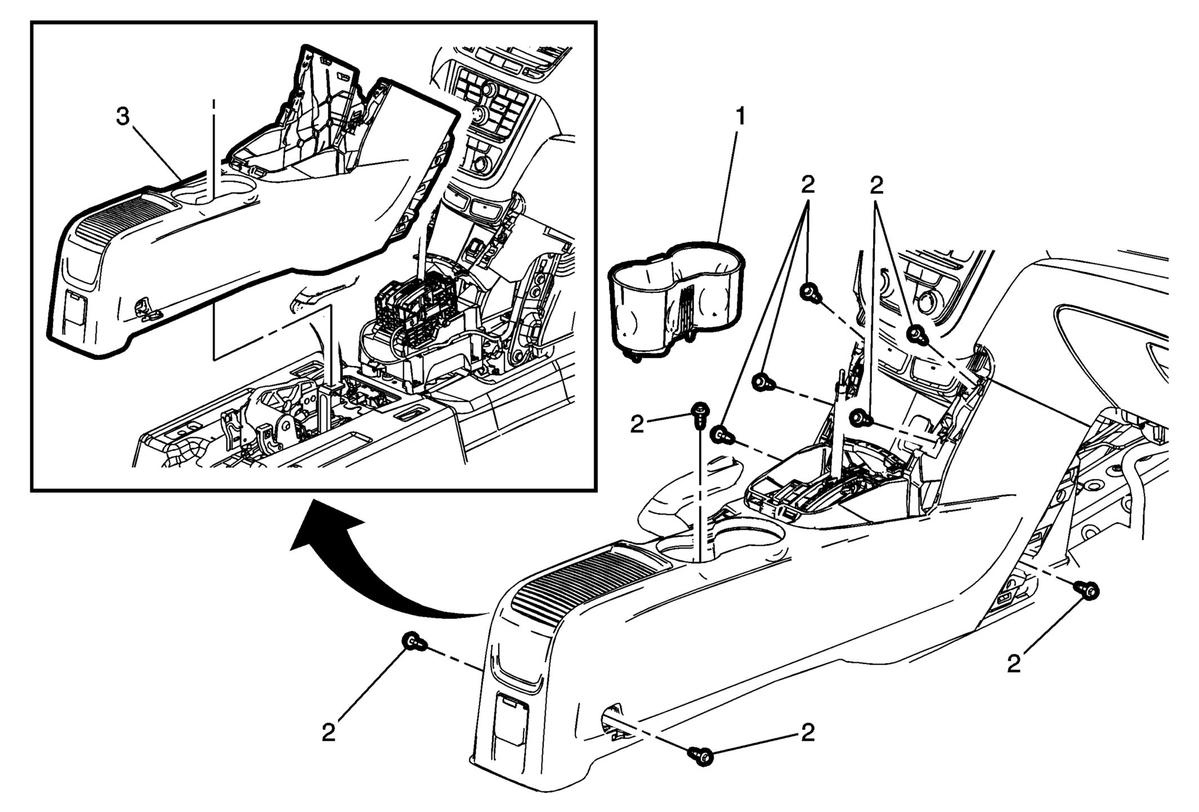

| 1 |
Front Floor Console Cup Holder
Procedure
Lift up the cup holder liner and trim plate to access the fastener from the floor console. |
| 2 |
Front Floor Console Fasteners (Qty: 9)
Procedures
- Position the front seats as necessary to access the console bolt access hole covers and fasteners.
- Use a flat bladed plastic trim tool to open the front floor console bolt access hole cover to access the fasteners from the rear of the floor console.
Tighten
2.5 N.m (22 lb in) |
| 3 |
Front Floor Console Procedures
- Set the park brake lever.
- Place the shift control rearward.
- Disconnect electrical connections.
- With the aid of an assistant lift the floor console forward and over the park brake handle, then away from the instrument panel assembly.
|
