Compressor Pressure Relief Valve Replacement (LE2)
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
Preliminary Procedure
|
|

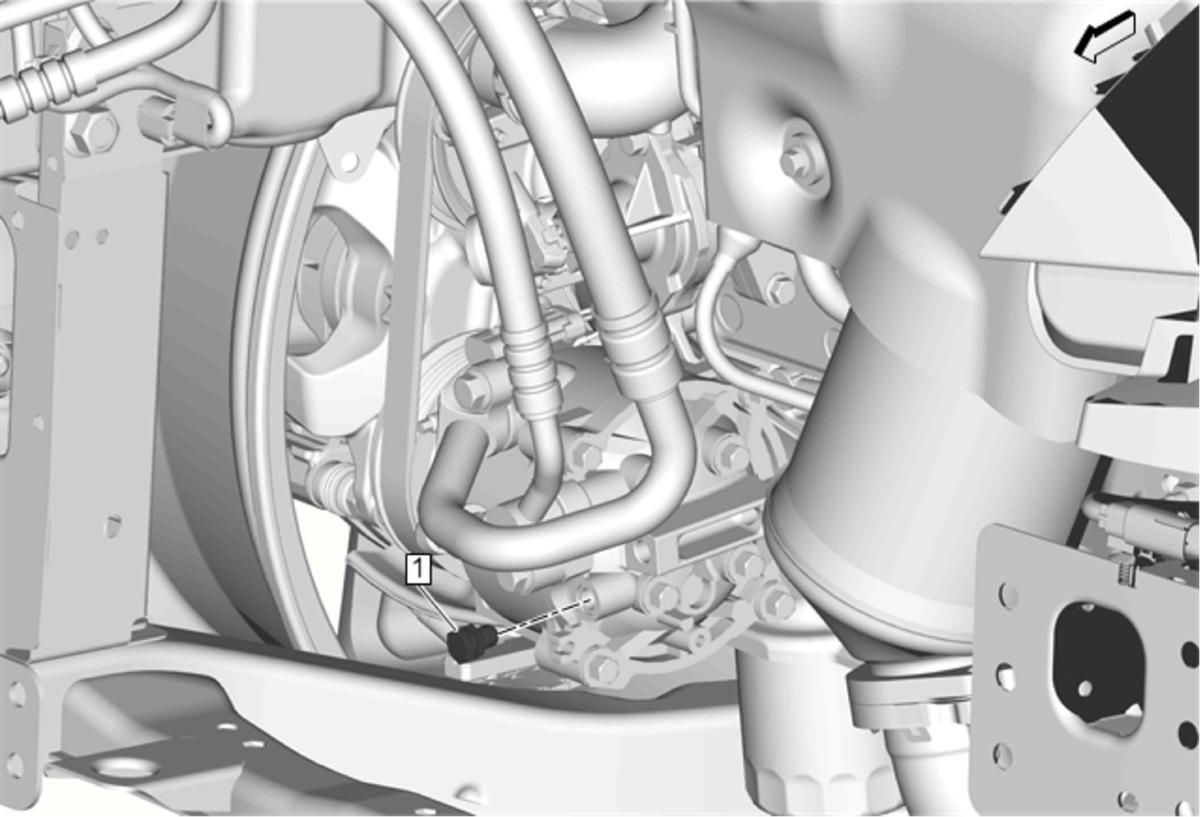

| 1 | Air Conditioning Compressor Pressure Relief Valve
CAUTION:
Refer to Component Fastener Tightening Caution . Procedure Remove and discard sealing washers. Air Conditioning System Seal Replacement Tighten 8 N.m (70 lb in) |
