Removal Procedure

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Dust Warning .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the rear brake caliper. Refer to Rear Brake Caliper Replacement .
  4. GM2771543

    Remove the outer brake pad (1).

    5. NOTE:

    The inner brake pad is equipped with the wear sensor.

  5. Remove the inner brake pad (2).
  6. GM2771545

    Remove the upper and lower brake pad springs (1).

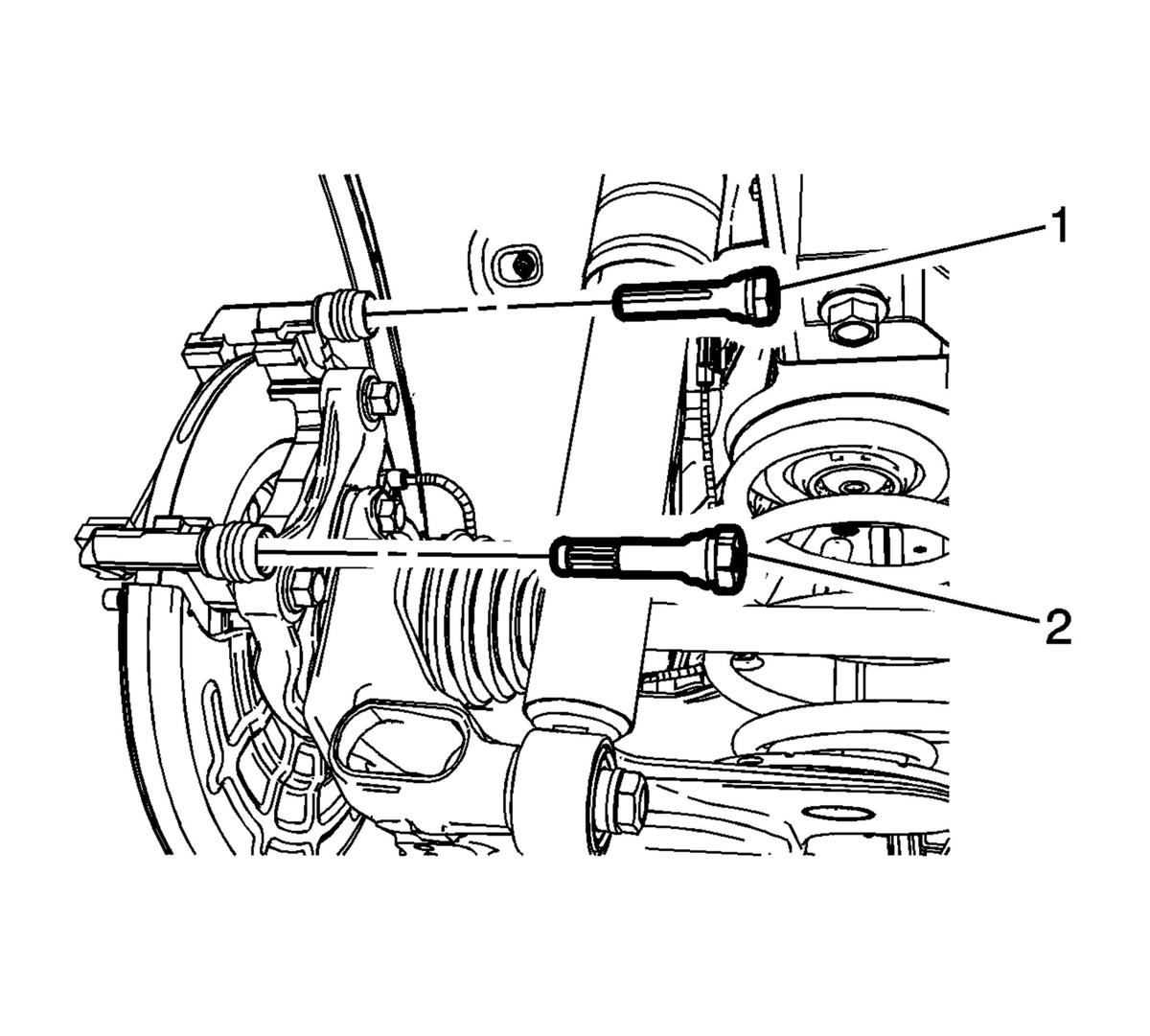

  7. GM2771549

    Remove the upper brake caliper guide pin (1).

    8. NOTE:

    The lower brake caliper guide pin is equipped with a bushing and must be installed in the same location.

  8. Remove the lower brake caliper guide pin (2).

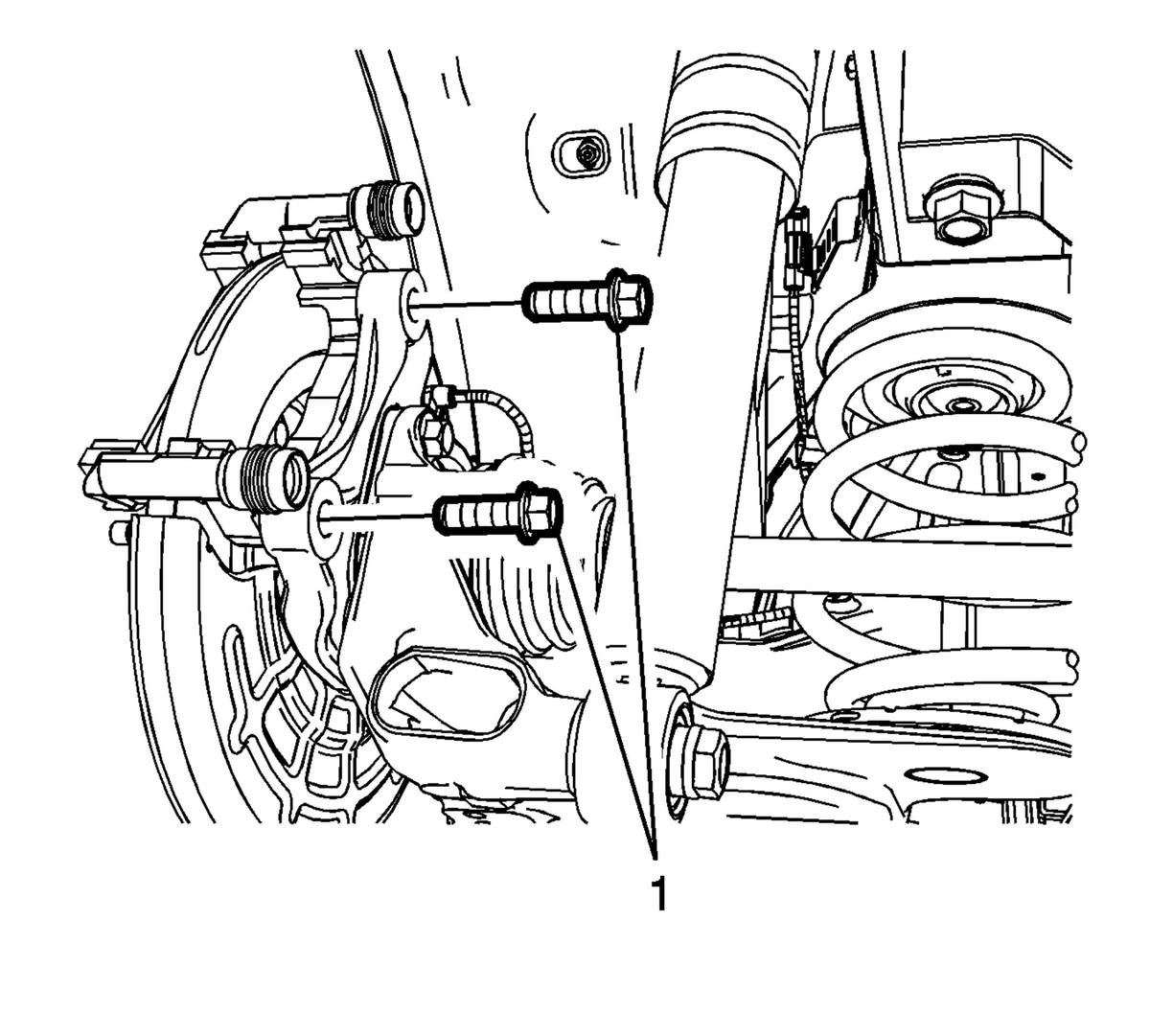

  9. GM2771551
    NOTE:

    Do not reuse the brake caliper bracket bolts.

    Remove and discard the brake caliper bracket bolts (1).

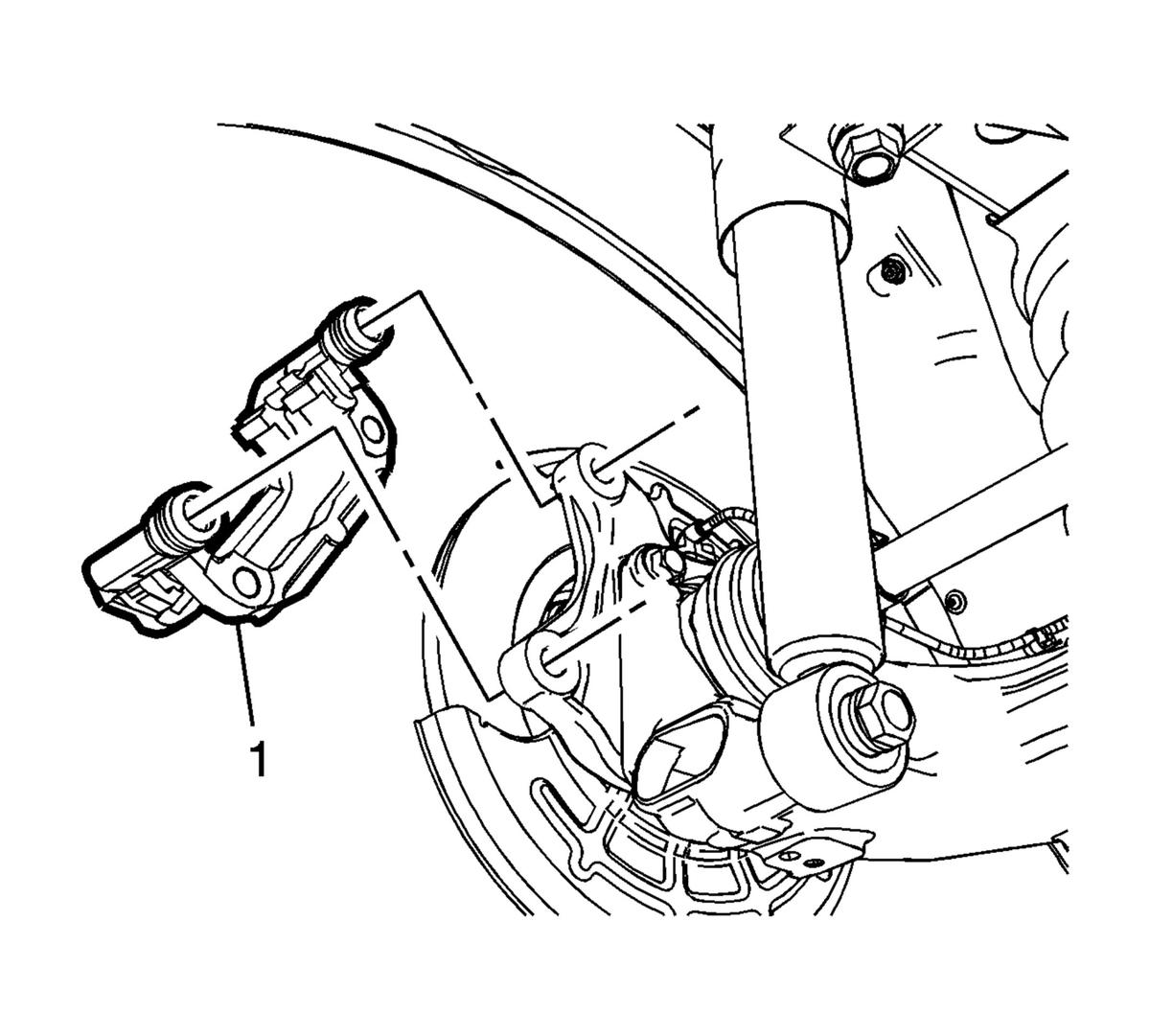

  10. GM2771553

    Remove the rear brake caliper bracket (1).
