Communication Interface Module Battery Replacement (IOR)
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

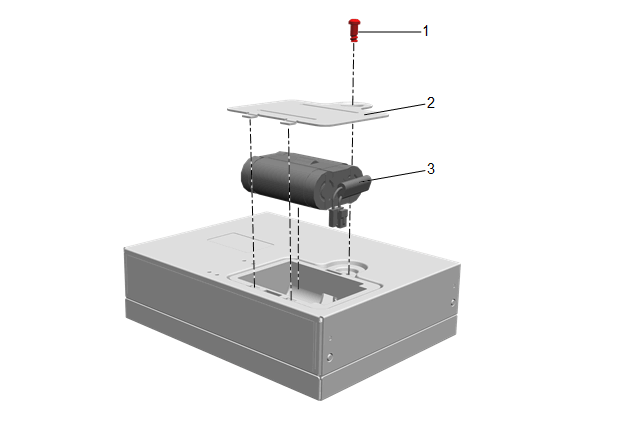

| Callout | Component Name |
|---|---|
| Preliminary Procedure Communication Interface Module Replacement (Chevrolet) Communication Interface Module Replacement (Buick) |
|
| 1 | Communication Interface Module Battery Bolt
CAUTION:
Tighten 5 N.m (44 lb in) |
| 2 | Communication Interface Module Battery Cover |
| 3 | Communication Interface Module Battery Procedure For programming and set up procedures, refer to Control Module References |
