Headlamp Automatic Control Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

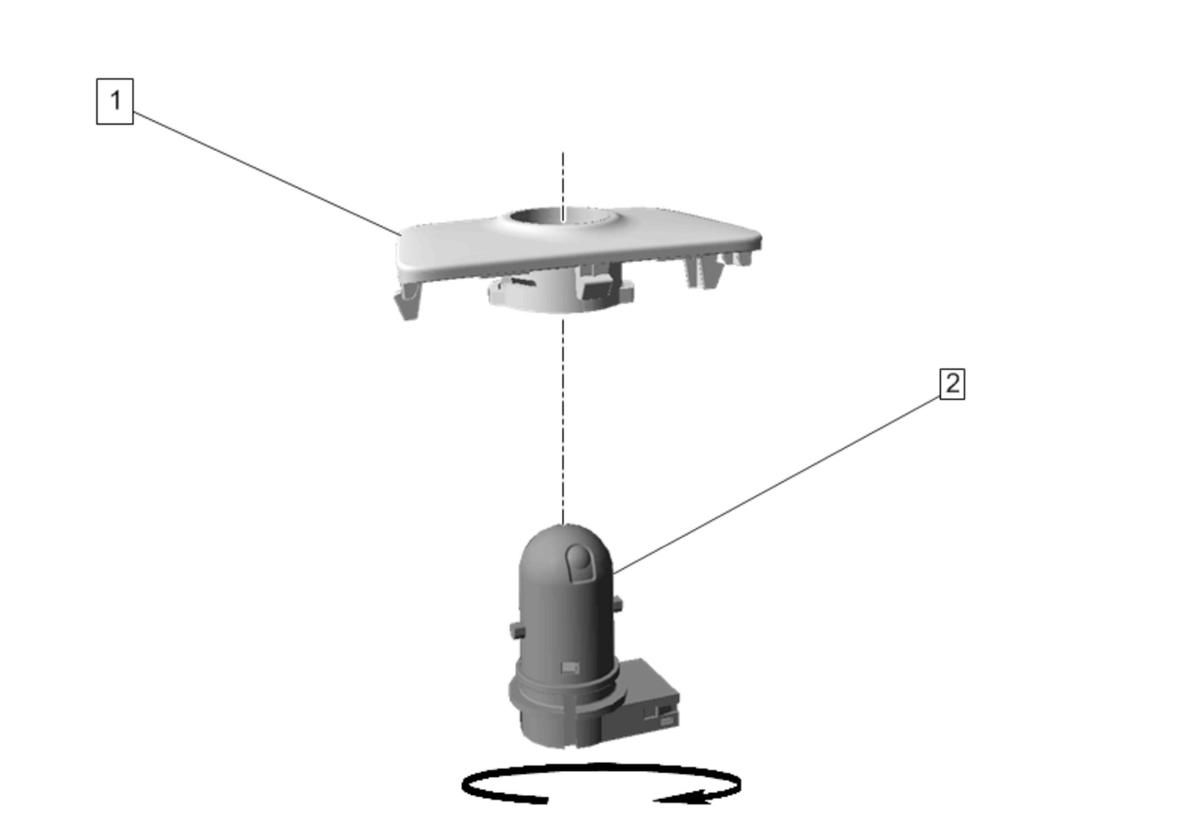

Callout	Component Name
1	Daytime Running Lamp Ambient Light Bezel Replacement (Chevrolet)
2	Headlamp Automatic Control Ambient Light Sensor Procedure Disconnect the electrical connector. Turn the headlamp automatic control ambient light sensor a quarter of a turn counter clockwise to remove.

Callout

Component Name

Daytime Running Lamp Ambient Light Bezel Replacement (Chevrolet)

Headlamp Automatic Control Ambient Light Sensor

Procedure

Disconnect the electrical connector.
Turn the headlamp automatic control ambient light sensor a quarter of a turn counter clockwise to remove.
