Shift Lock Control Schematic Wiring Diagram (Trax)
›

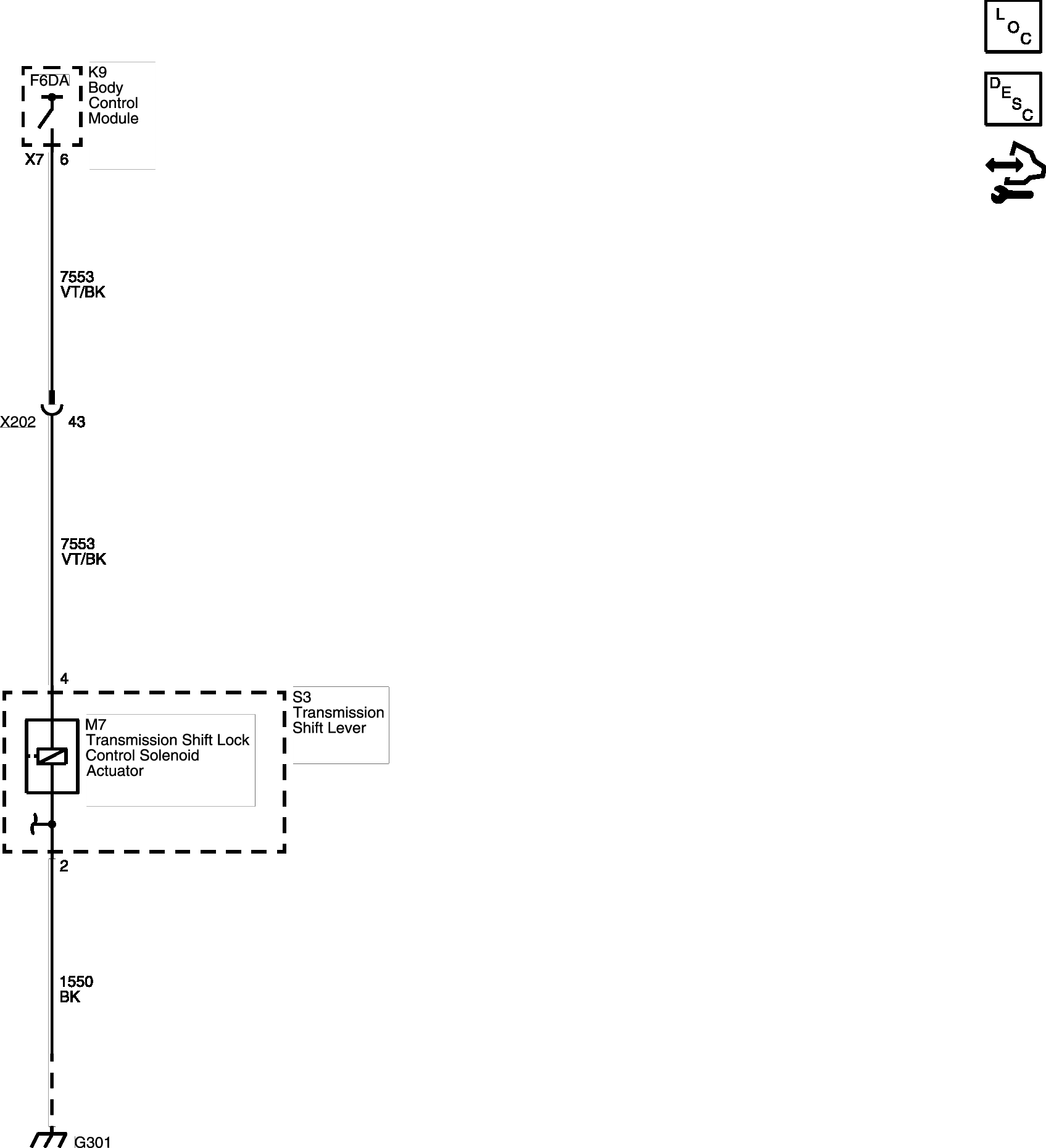

Shift Lock Control (Trax with MM1)
Shift Lock Control (Trax with MM1)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
