Door Lock Switch Replacement - Passenger Front

GM3910903

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Front Side Door Trim Replacement

1

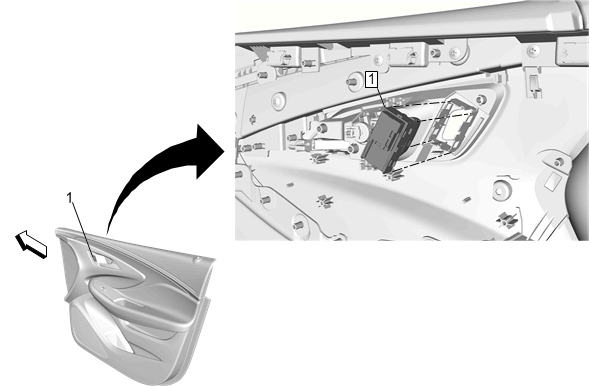

Door Lock Switch Passenger Front

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
Disconnect the electrical connector.
Control Module References for programming and setup information, if required.
