Front Seat Vent Fan Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

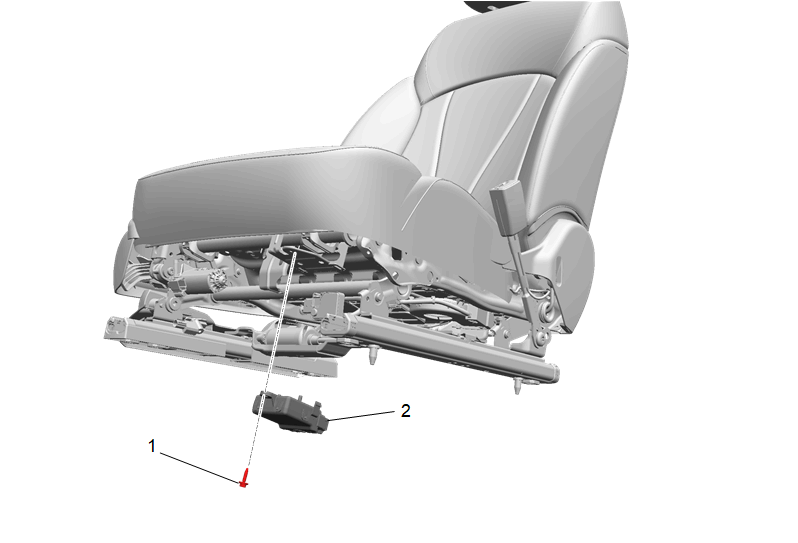

Callout	Component Name
1	Front Seat Vent Fan Control Module Screw CAUTION: Refer to Fastener Caution . Procedure  Adjust the seat to its highest position. Tighten  4.5 N.m (40 lb in)
2	Front Seat Vent Fan Control Module Procedure  Disconnect all electrical connectors.
