Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Exhaust System Intermediate Gasket (3) - Install NEW
Exhaust System Front Gasket (2) - Install NEW
Exhaust Front Pipe (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Pipe Hanger Bracket Nut (1) - Install [2x] - Exhaust Pipe Front Hanger Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

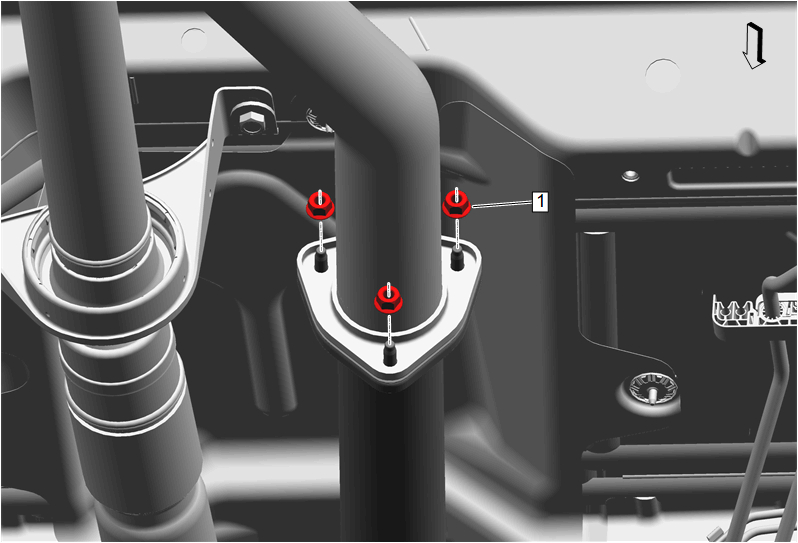

Exhaust Front Pipe Nut (1) @ Exhaust Muffler - Install and tighten [3x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

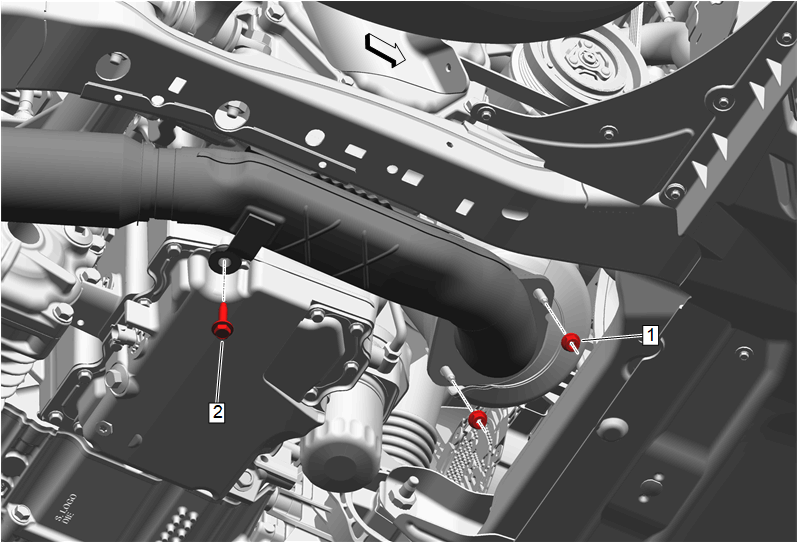

Exhaust Front Pipe Bolt (2) - Install and tighten22 N.m (16 lb ft)
Exhaust Front Pipe Nut (1) - Install and tighten [2x] 22 N.m (16 lb ft)
