Radio Antenna Cable Replacement
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
|
Preliminary Procedure
- Liftgate Upper Trim Finish Panel Replacement
- Lower the rear of the headliner Headlining Trim Panel Replacement
|
| 1 |

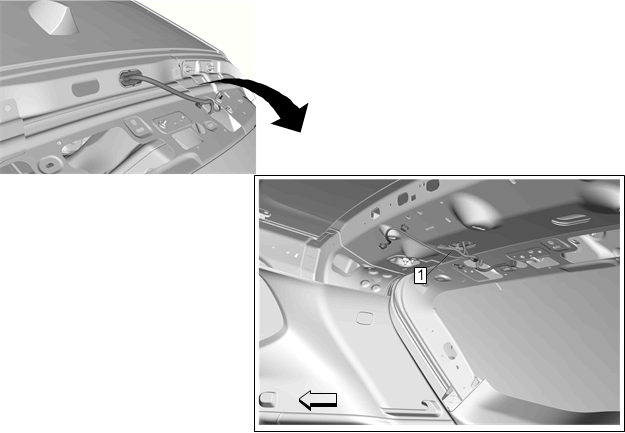

Radio Antenna Cable Procedure
- Disconnect the cable from the radio antenna amplifier.
- Disconnect the cable from radio and mobile telephone antenna cable.
- Disconnect the clips on the cable from several places on the roof panel.
- Pull cable with grommet through roof panel opening.
|
