Section 11 (Cellular System, Entertainment System, And Navigation System)
›
Schematic Wiring Diagrams
›
Radio/Navigation System Wiring Schematics
›
Human Machine Interface Control Module - Power, Ground, Serial Data, and Functions

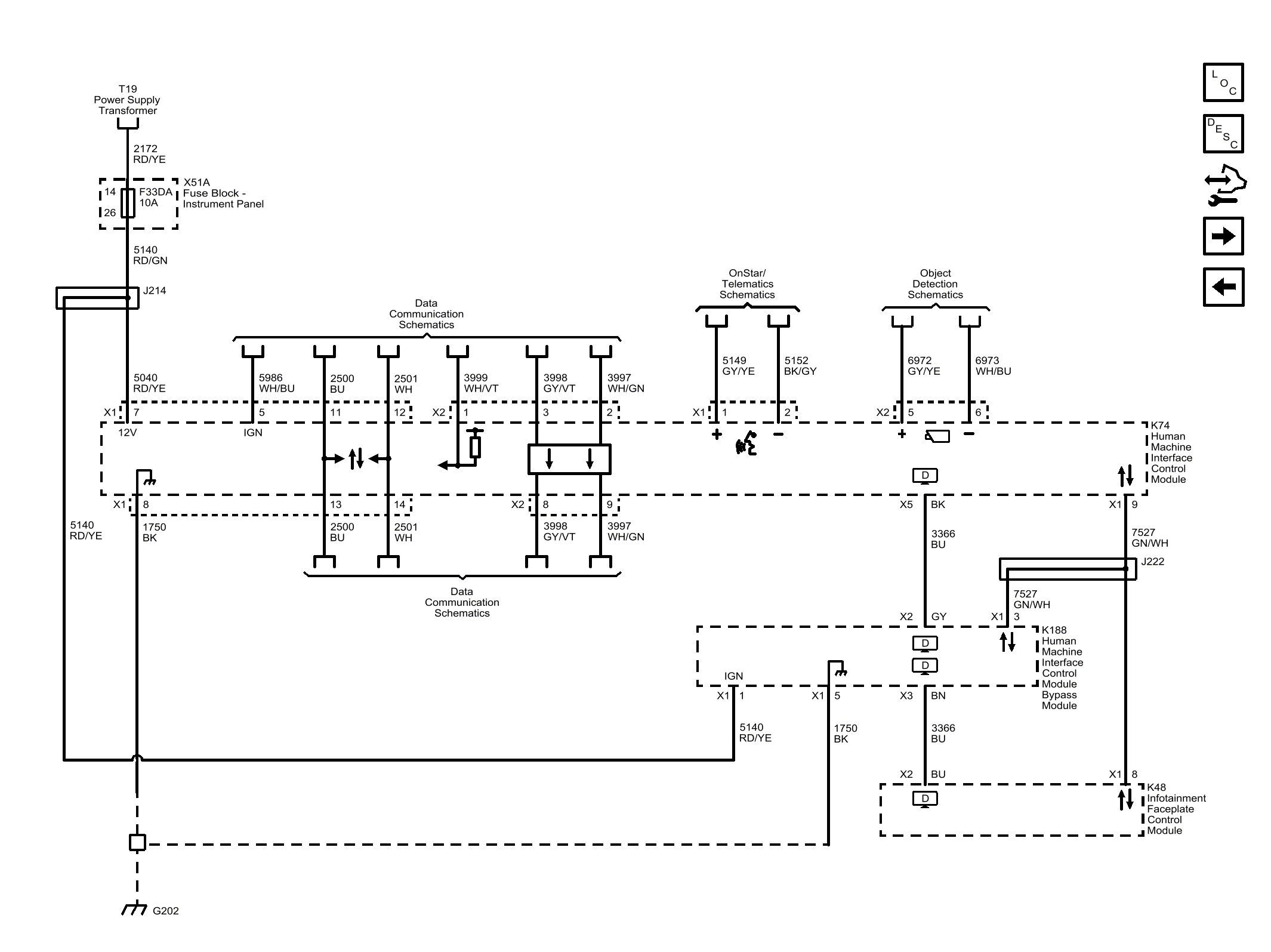

Human Machine Interface Control Module - Power, Ground, Serial Data, and Functions
WARNING:
This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
