Airbag Front Seat Position Sensor Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

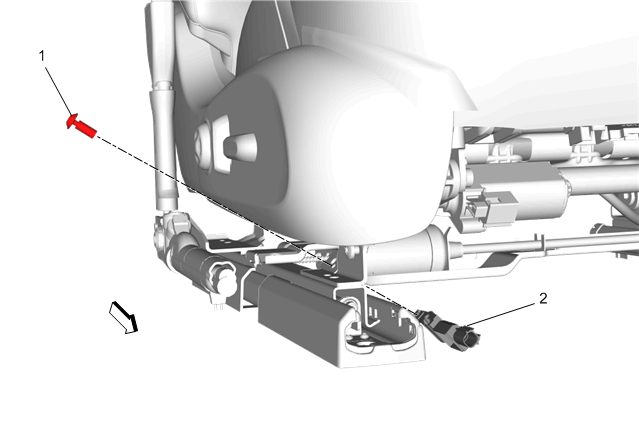

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures SIR Disabling and Enabling Front Seat Belt Anchor Plate Tensioner Cover Replacement
1	Airbag Front Seat Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 7.5 N.m (66 lb in)
2	Airbag Front Seat Position Sensor Procedure Disconnect the electrical connector.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures

SIR Disabling and Enabling
Front Seat Belt Anchor Plate Tensioner Cover Replacement

Airbag Front Seat Position Sensor Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
7.5 N.m (66 lb in)

Airbag Front Seat Position Sensor
Procedure
Disconnect the electrical connector.
