Airbag Side Impact Sensor Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

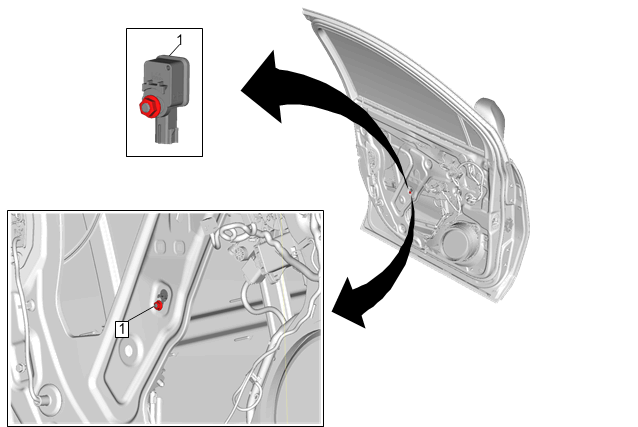

GM3982801
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Following the deployment of a side impact air bag, inspect the following parts for damage. Replace these parts if necessary:

  • The seat cushion frame
  • The seat recliner, if equipped
  • The seat adjuster
  • The seat back frame

Failure to do so may cause future personal injury.

Preliminary Procedures

  1. SIR Disabling and Enabling
  2. Front Side Door Trim Replacement
  3. Remove the front side door water deflector.
1 Airbag Side Impact Sensor Assembly
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Disconnect the electrical connector.
  2. Loosen the fastener and slide the sensor out of the keyhole slot.
  3. The bolts are integral to the sensor assembly, DO NOT remove separately.

Tighten
7.5 N.m (66 lb in)
NOTE:

The sensor is located on the inside of the front door inner panel.
