Sunroof Window Motor Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

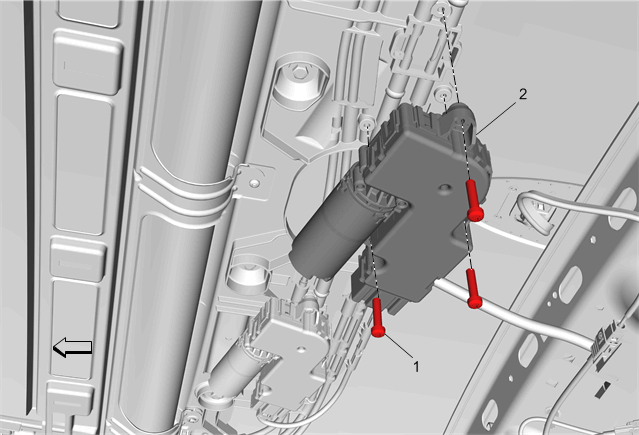

Callout	Component Name
Preliminary Procedure Headlining Trim Panel Replacement
1	Sunroof Actuator Motor Bolt [3x] CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. With a turning motion, pull downward on the sunroof window motor. Disengage the motor from the drive cables. Install the sunroof window motor to the frame with a turning motion, pushing upward. This will engage the motor into the drive cables. Tighten 4 N.m (35 lb in)
2	Sunroof Window Motor Procedure Sunroof/Sunshade Motor Initialization Verify the sunroof window motor operation.

Callout

Component Name

Preliminary Procedure
Headlining Trim Panel Replacement

Sunroof Actuator Motor Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Procedure

Disconnect the electrical connector.
With a turning motion, pull downward on the sunroof window motor. Disengage the motor from the drive cables.
Install the sunroof window motor to the frame with a turning motion, pushing upward. This will engage the motor into the drive cables.

Tighten
4 N.m (35 lb in)

Sunroof Window Motor

Procedure

Sunroof/Sunshade Motor Initialization
Verify the sunroof window motor operation.
