Sunroof Window Replacement - Front

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

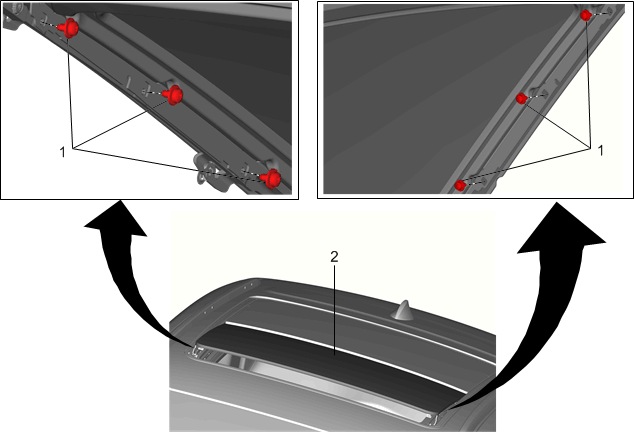

Callout	Component Name
1	Sunroof Window Screw [6x] CAUTION: Refer to Fastener Caution . Procedure Place the sunshade in the full open position. Open the sunroof window to the vent position. Pull down on the inner sunroof window seal to gain access to the screws. Tighten 1.5 N.m (13 lb in)
2	Sunroof Window - Front Procedure Lift the sunroof window out of the frame. Sunroof Window Height and Opening Fit Adjustment Water test and inspect sunroof for proper operation.

Callout

Component Name

Sunroof Window Screw [6x]

CAUTION:

Refer to Fastener Caution .

Procedure

Place the sunshade in the full open position.
Open the sunroof window to the vent position.
Pull down on the inner sunroof window seal to gain access to the screws.

Tighten
1.5 N.m (13 lb in)

Sunroof Window - Front

Procedure

Lift the sunroof window out of the frame.
Sunroof Window Height and Opening Fit Adjustment
Water test and inspect sunroof for proper operation.
