Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

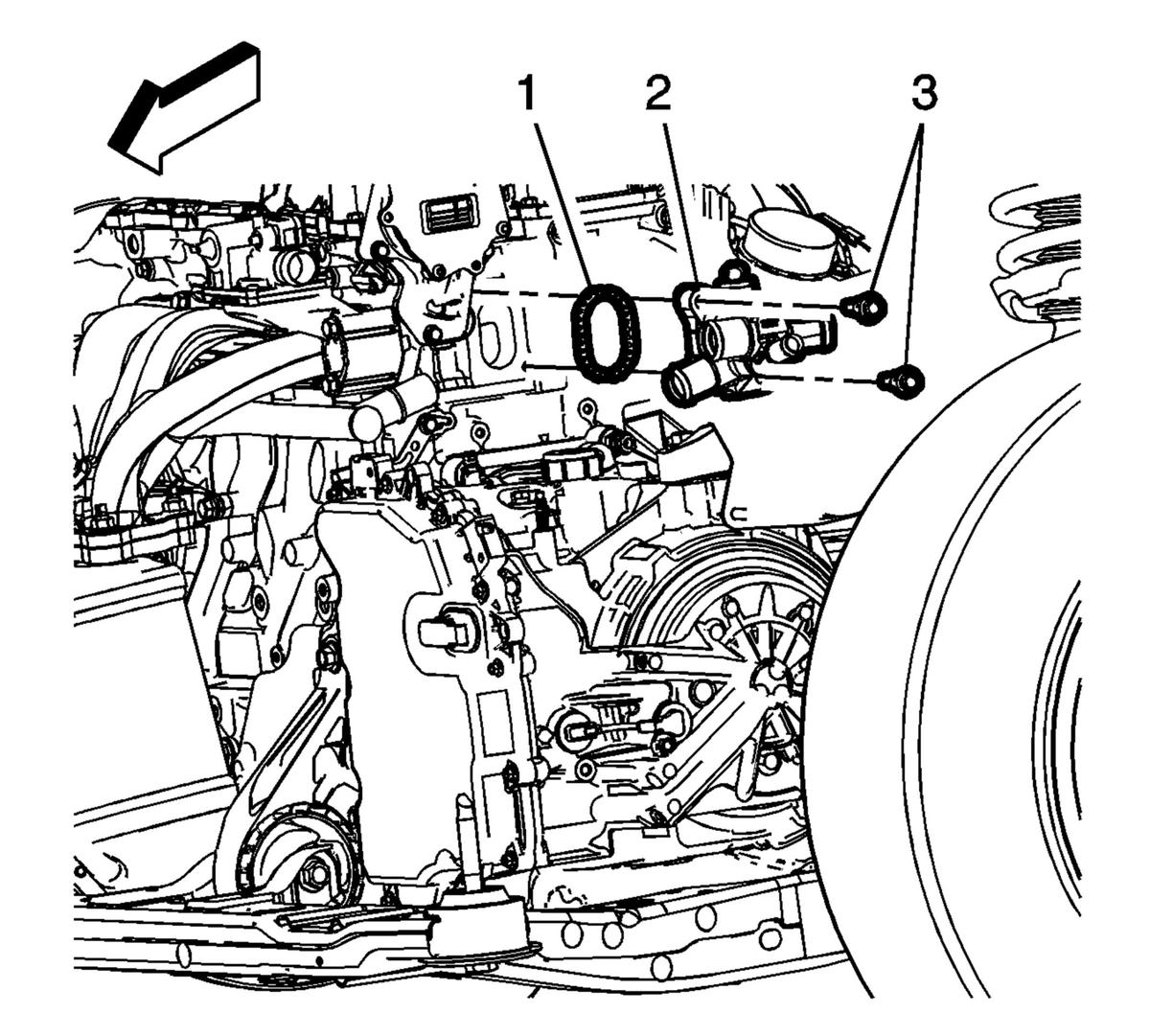

Install the water outlet (2) into position with a NEW seal (1).
- Install the water outlet fasteners (3) and tighten to 12 N.m (106 lb in).

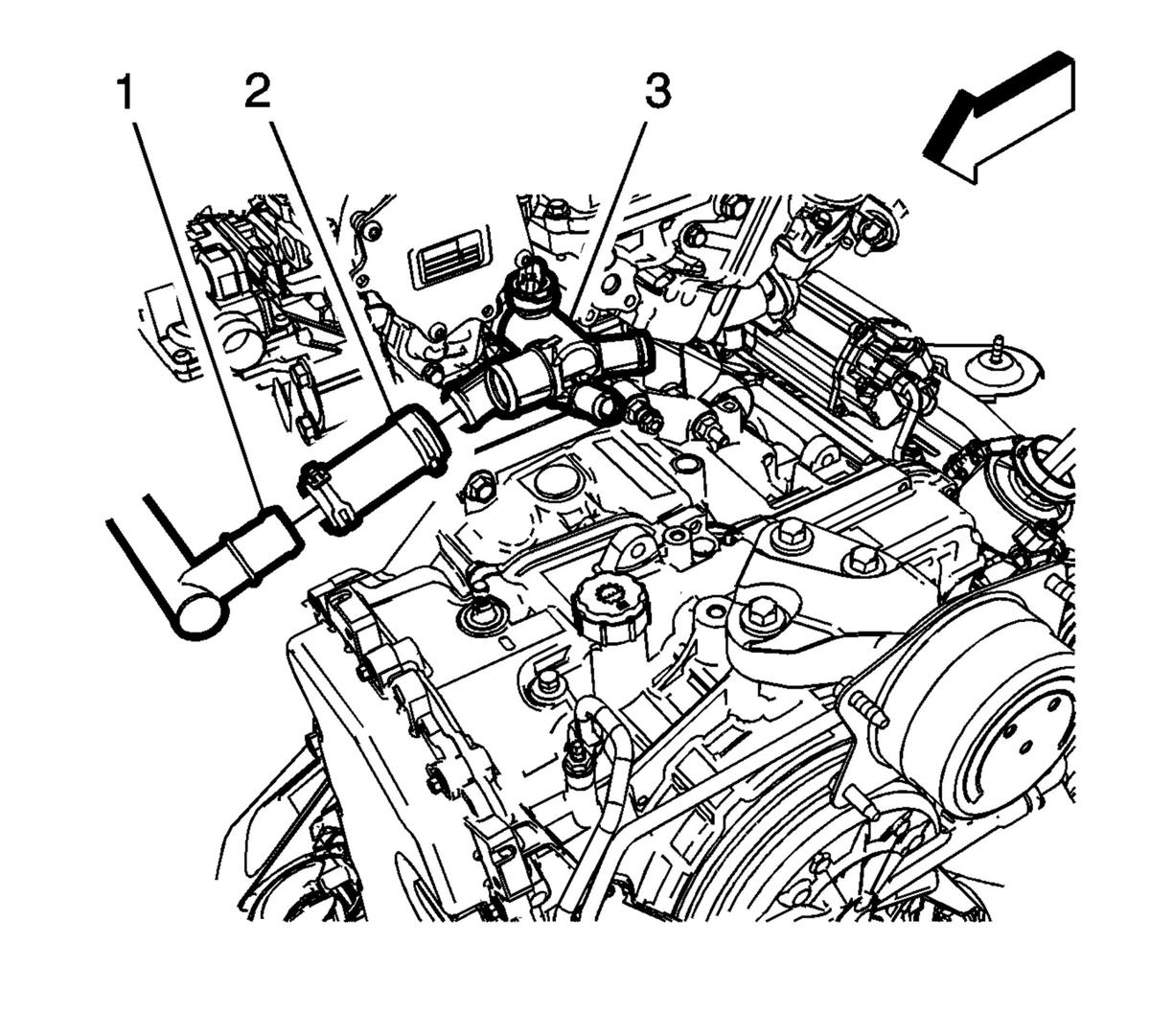

Install the thermostat bypass hose (2) to the water outlet (3).

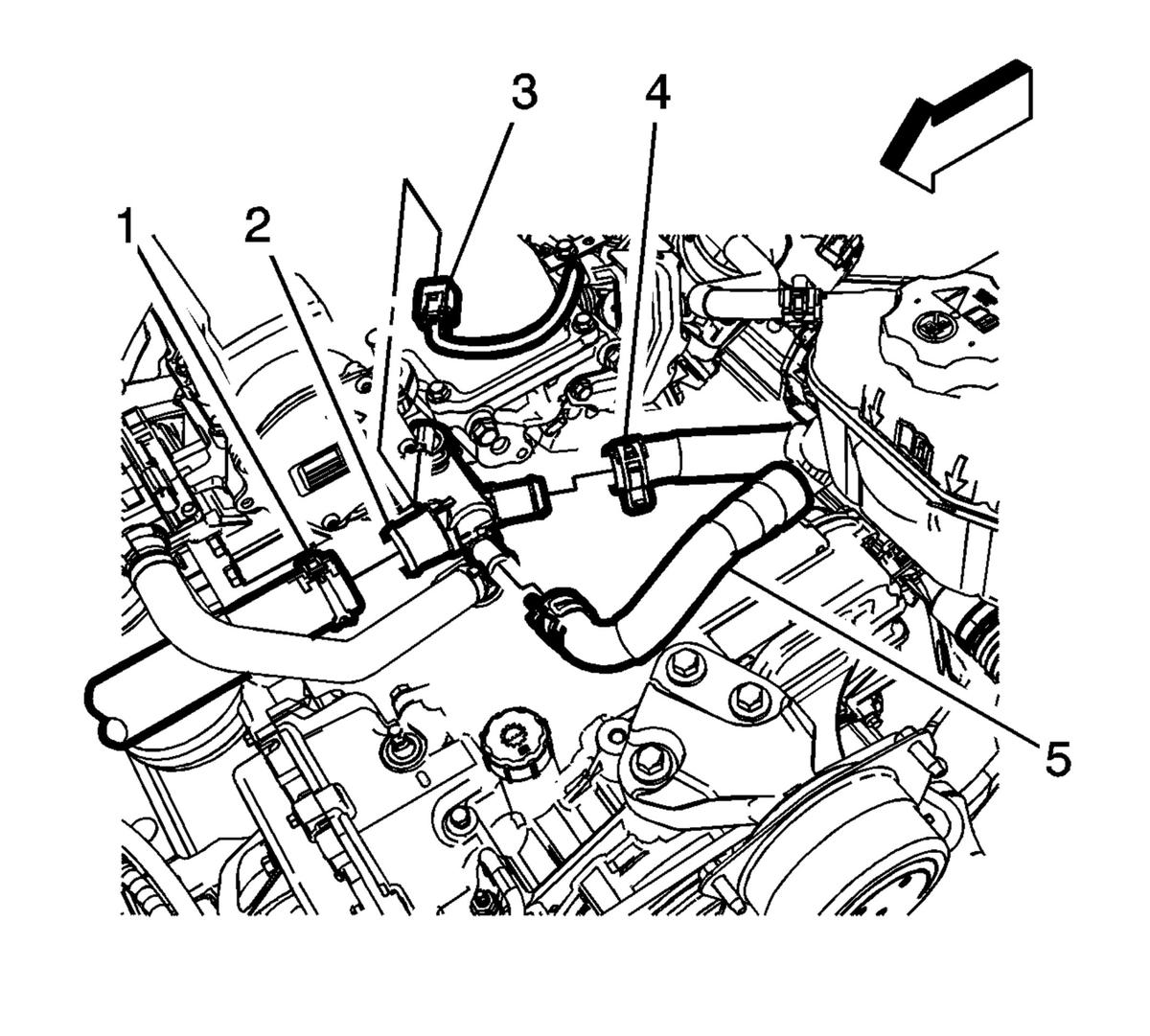

Connect the engine coolant temperature (ECT) sensor connector (3) to the water outlet (2).
- Install the following hoses to the water outlet:
- Radiator inlet hose (1).
- Heater inlet hose (4).
- Heater outlet hose (5).
- Install the battery tray. Refer to Battery Tray Replacement .
- Install the intake manifold cover. Refer to Intake Manifold Cover Replacement (LTG)Intake Manifold Cover Replacement (LCV) .
- Fill the cooling system. Refer to Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (Static) .
- Start the engine and check for coolant leaks.
CAUTION:
Refer to Fastener Caution .
