Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

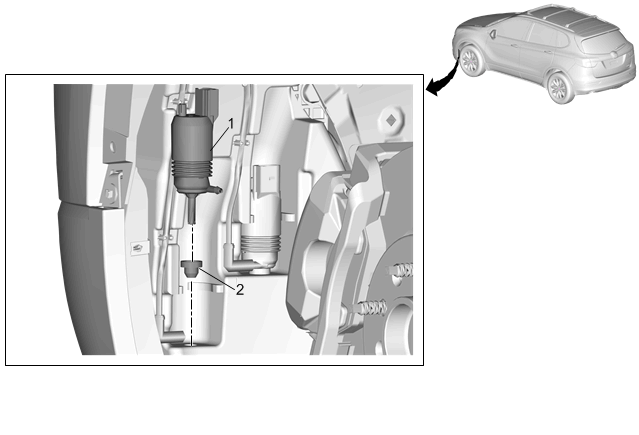

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner Replacement - Left Side
1	Windshield Washer Pump Procedure Disconnect the electrical connector. Carefully pull outward at the top of the windshield washer pump, to disengage the pump from the windshield washer solvent container. Disconnect the windshield washer pump hose. Rotate the washer pump, so the spout points outward, from the windshield washer solvent container. Using two appropriate tools placed under each side of the windshield washer pump grommet, lift and disengage the windshield washer pump and grommet from the windshield washer solvent container.
2	Windshield Washer Pump Grommet NOTE: Install a new windshield washer pump grommet upon replacement of the windshield washer pump.

Callout

Component Name

Preliminary Procedure
Front Wheelhouse Liner Replacement - Left Side

Windshield Washer Pump

Procedure

Disconnect the electrical connector.
Carefully pull outward at the top of the windshield washer pump, to disengage the pump from the windshield washer solvent container.
Disconnect the windshield washer pump hose.
Rotate the washer pump, so the spout points outward, from the windshield washer solvent container.
Using two appropriate tools placed under each side of the windshield washer pump grommet, lift and disengage the windshield washer pump and grommet from the windshield washer solvent container.

Windshield Washer Pump Grommet

NOTE:

Install a new windshield washer pump grommet upon replacement of the windshield washer pump.
