Windshield Washer Solvent Container Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

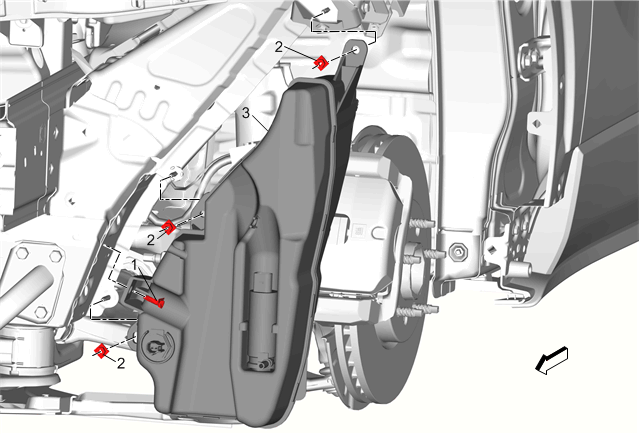

Callout	Component Name
Preliminary Procedures Windshield Washer Solvent Container Filler Tube Replacement Front Bumper Fascia Replacement
1	Windshield Washer Solvent Container Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Windshield Washer Solvent Container Nut [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Windshield Washer Solvent Container Procedure Disconnect the headlamp washer pump hose. Disconnect the headlamp washer pump electrical connector Disconnect the windshield washer solvent level sensor connector. Disconnect the two windshield washer pump hoses. Disconnect the two windshield washer pump electrical connectors. Drain the windshield washer solvent container into a clean suitable container. Upon replacement of the solvent container, refill the windshield washer solvent fluid.
