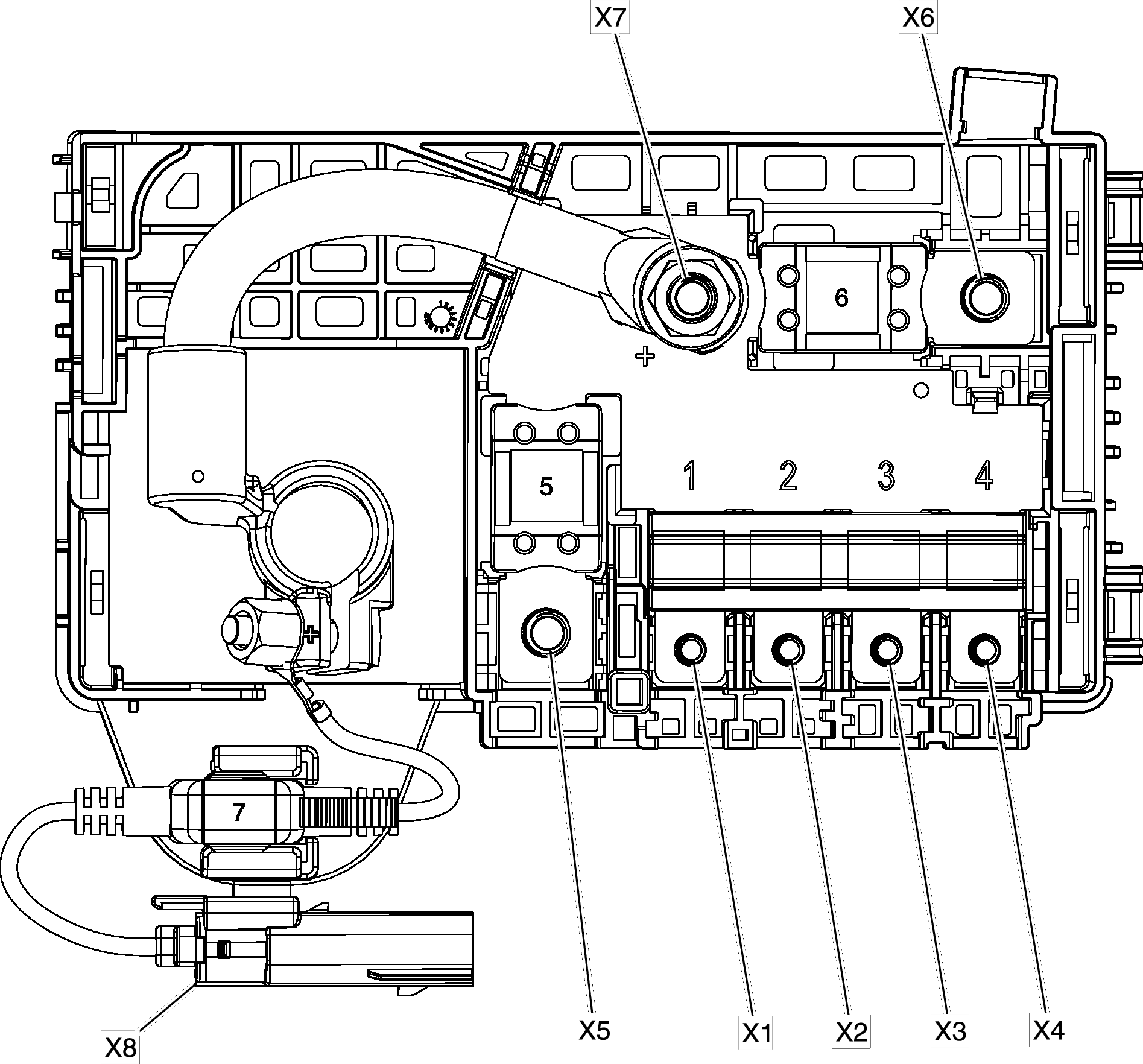

X50D Fuse Block - Battery Top View
X50D Fuse Block - Battery Usage
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1BA Fuse | 100A | X51A Fuse Block - Instrument Panel |
| 2 | - | F2BA Fuse | 100A | X51A Fuse Block - Instrument Panel |
| 3 | - | F3BA Fuse | 100A | X53A Fuse Block-Rear Body |
| 4 | - | F4BA Fuse | 100A | X53A Fuse Block-Rear Body |
| 5 | - | F5BA Fuse | 250A | X50A Fuse Block - Underhood |
| 6 | - | F6BA Fuse | 500A | G13 Generator, M64 Starter Motor |
| 7 | - | F7BA Fuse | 5A | B110 Battery Sensor Module |
X50D Fuse Block - Battery Usage
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| 1 | - | F1BA Fuse | 100A | X51A Fuse Block - Instrument Panel |
| 2 | - | F2BA Fuse | 100A | X51A Fuse Block - Instrument Panel |
| 3 | - | F3BA Fuse | 100A | X53A Fuse Block-Rear Body |
| 4 | - | F4BA Fuse | 100A | X53A Fuse Block-Rear Body |
| 5 | - | F5BA Fuse | 250A | X50A Fuse Block - Underhood |
| 6 | - | F6BA Fuse | 500A | G13 Generator, M64 Starter Motor |
| 7 | - | F7BA Fuse | 5A | B110 Battery Sensor Module |
