Door Lock Switch Replacement - Passenger Front

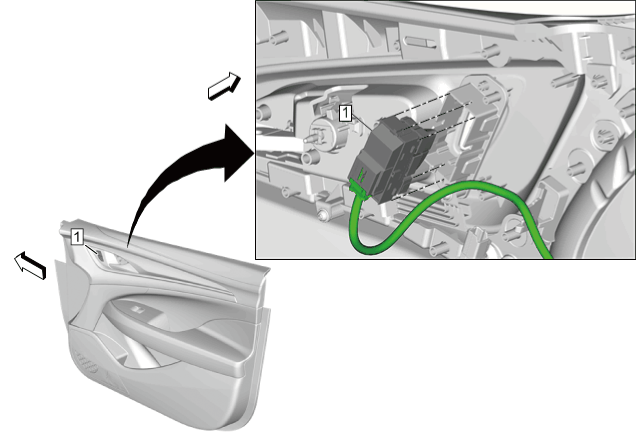

GM4324104Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim-Right Side - Remove - Front Side Door Trim Replacement
1 Door Lock Switch

Procedure

  1. Disconnect the electrical connector.
  2. From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
