FixVault
Home
›
Buick
›
2019
›
LaCrosse Base
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›

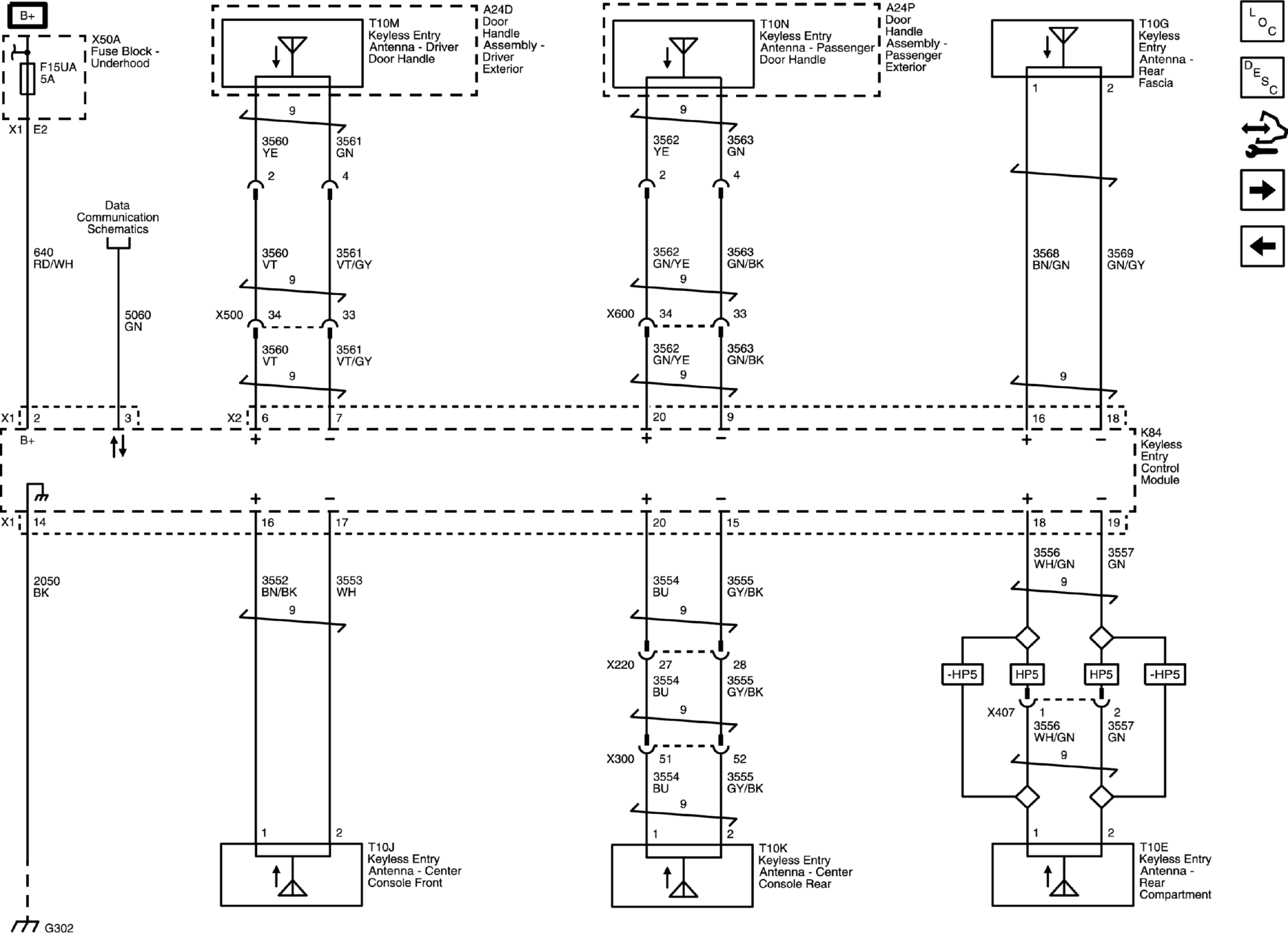

Keyless Entry - Passive and Keyless Start
Keyless Entry - Passive and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
