Driver Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

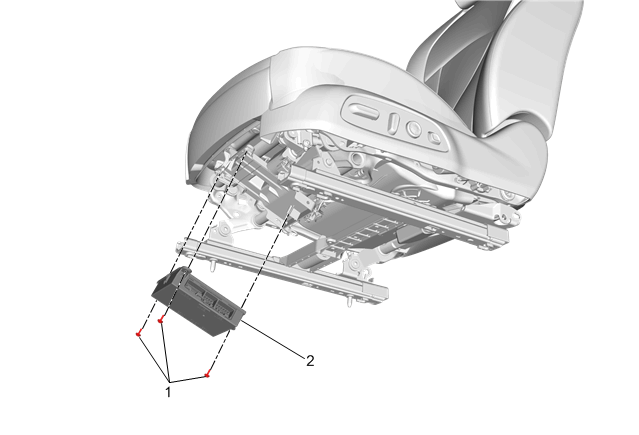

Callout	Component Name
Preliminary Procedure  Front Seat Removal and Installation
1	Driver Seat Adjuster Memory Module Fastener [3x] CAUTION: Fastener Caution Tighten  1.25 N.m (11 lb in)
2	Driver Seat Adjuster Memory Module Procedure  Disconnect the electrical connectors.
