Front Seat Heater Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

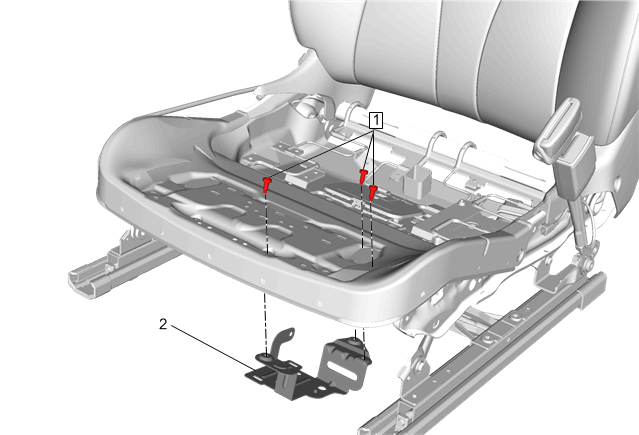

Callout	Component Name
Preliminary Procedure  Front Seat Back Cover and Pad Replacement
1	Front Seat Heater Control Module Bracket Fastener CAUTION: Fastener Caution Tighten  4.7N.m (42 lb in)
2	Front Seat Heater Control Module Bracket Procedure  Transfer components as necessary.
