Installation Procedure

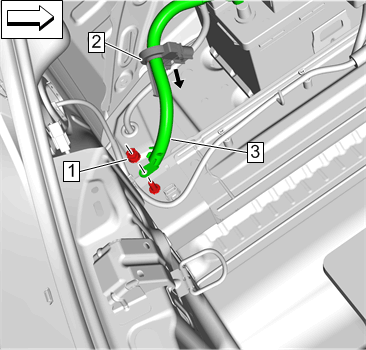

  1. GM4738784Courtesy of GENERAL MOTORS COMPANY

    Battery Current Sensor (2) - Install

  2. Battery Negative Cable (3) - Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Negative Cable Ground Nut (1) - Install and tighten 16N.m (12 lb ft)

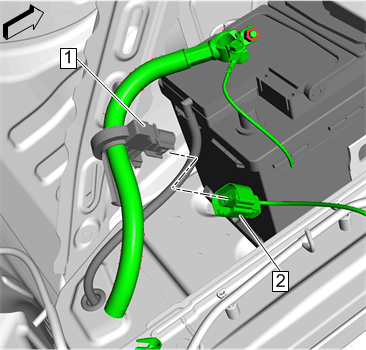

  4. GM4738782Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2)@Battery Current Sensor (1) - Connect

  5. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9)
  6. Install the left side rear compartment side trim panel. Rear Compartment Side Trim Replacement - Left Side (With LHN)Rear Compartment Side Trim Replacement - Left Side (With LGX)
