Low Frequency Instrument Panel Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition carpet to access antenna. Front Floor Panel Carpet Replacement - Left Side .

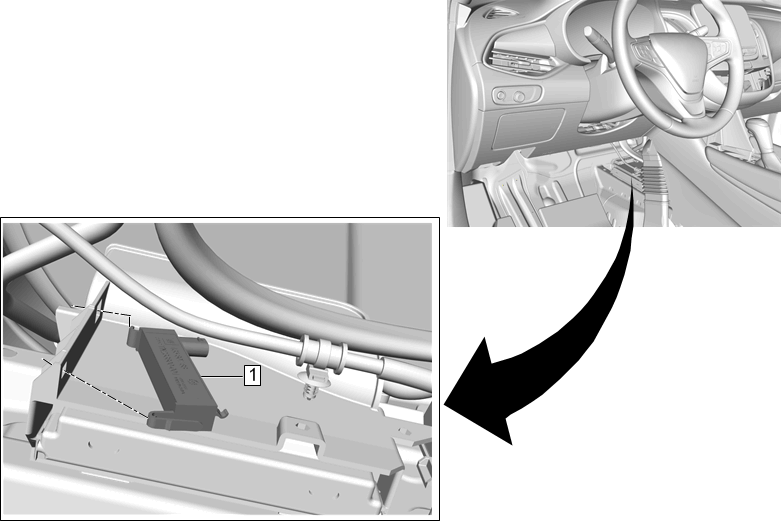

1	Low Frequency Instrument Panel Antenna Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedure
Reposition carpet to access antenna. Front Floor Panel Carpet Replacement - Left Side .

Low Frequency Instrument Panel Antenna

Procedure
