Remote Function Wiring Schematics
›

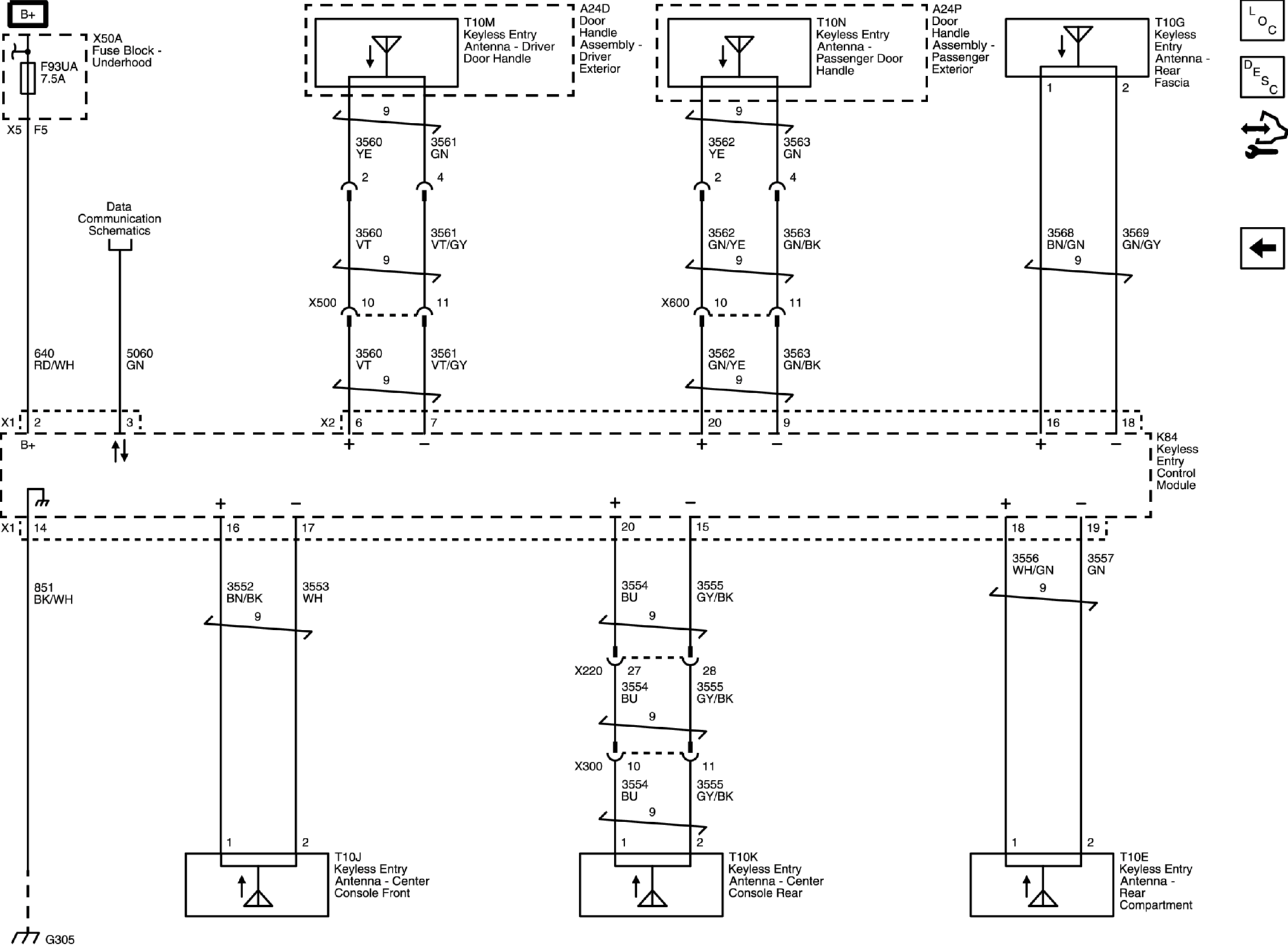

Keyless Entry - Passive and Keyless Start (BTM)
Keyless Entry - Passive and Keyless Start (BTM)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
