Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

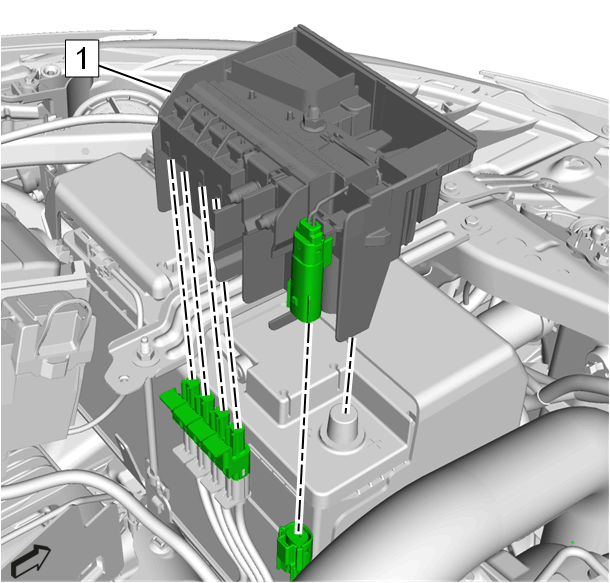

Battery Distribution Engine Compartment Fuse Block (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution

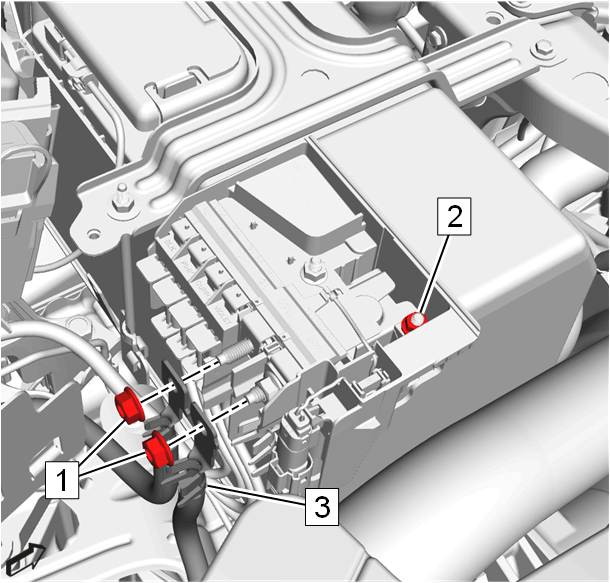

Battery Positive Cable Nut (2) - Install and tighten 9 N.m (80 lb in)
Body Wiring Harness (3) @ Battery Distribution Engine Compartment Fuse Block - Install
Install the 2 body wiring harness nuts (1) and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

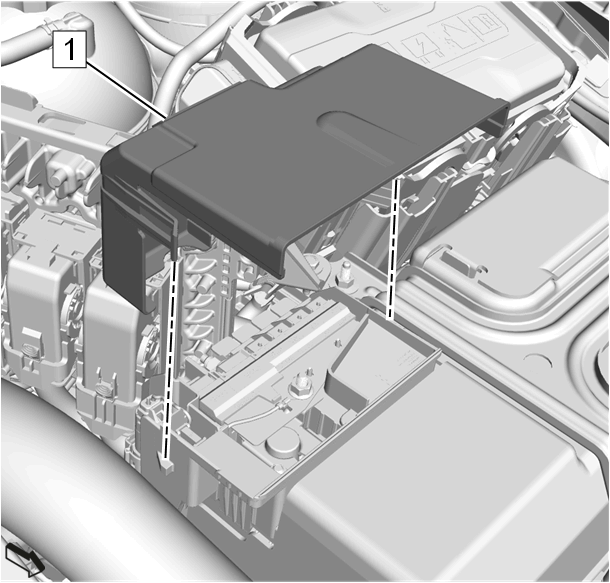

Battery Distribution Engine Compartment Fuse Block Cover - Install
Install the appropriate engine control module cover:
- For LTG engine, refer to Engine Control Module Replacement .
- For LGX engine, refer to Engine Control Module Replacement .
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (3.6L LGX) , or Battery Negative Cable Disconnection and Connection (2.0L LTG)
