Roof Console Replacement

Courtesy of GENERAL MOTORS COMPANY

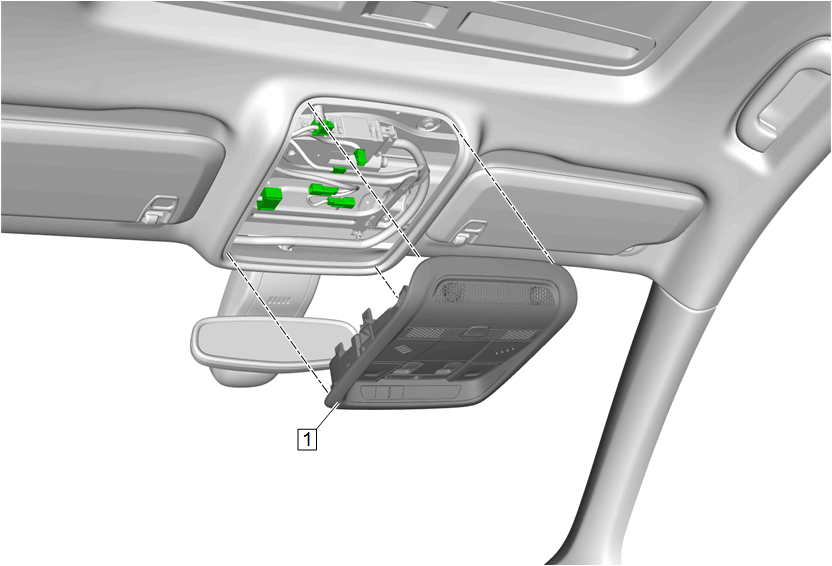

Callout	Component Name
1	Roof Console Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connector. NOTE: When installing the roof console do not squeeze or kink any wiring harness.
