Removal Procedure

  1. Steering Linkage Outer Tie Rod - Remove - Steering Linkage Outer Tie Rod Replacement

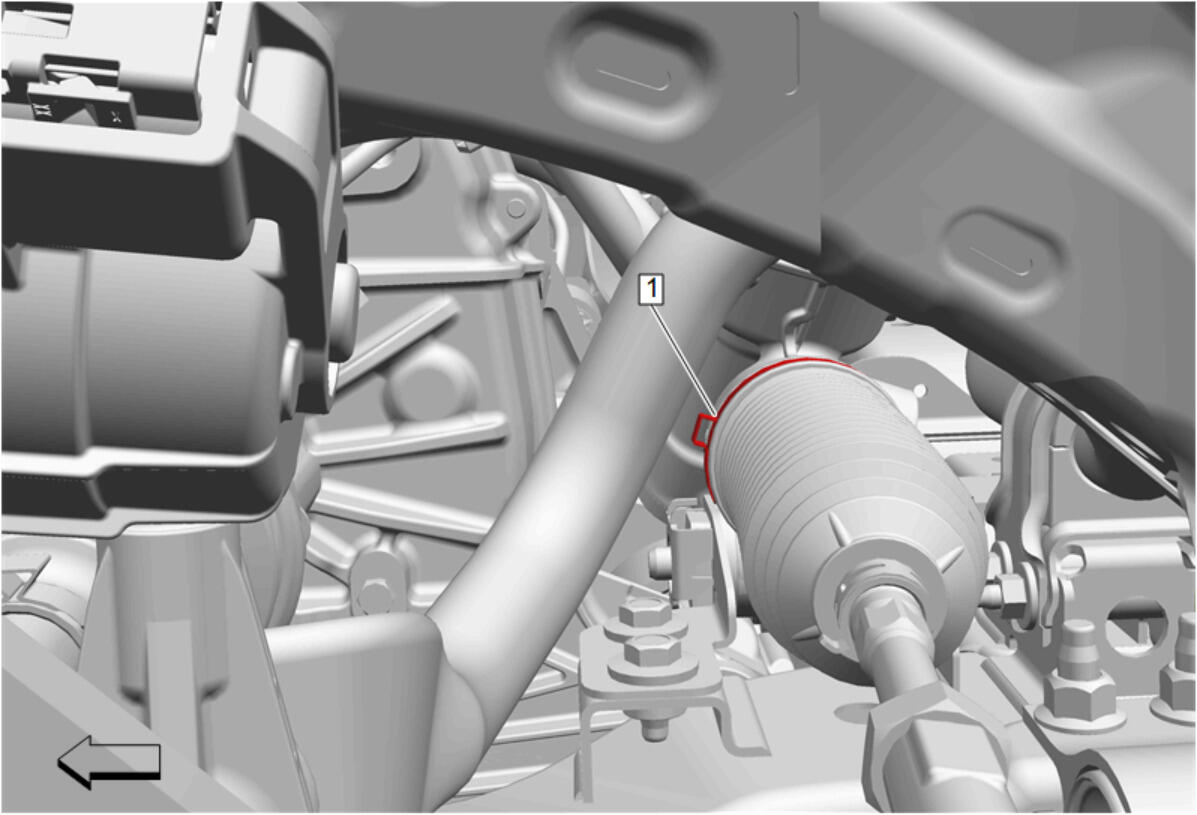

  2. GM5044050Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Inner Clamp (1) - Remove and DISCARD

  3. GM5044054Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.

    Steering Linkage Inner Tie Rod Nut (1) - Remove

  4. GM5044069Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Outer Clamp (1) - Remove

  5. GM5044086Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot (1) - Remove
