Driver Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

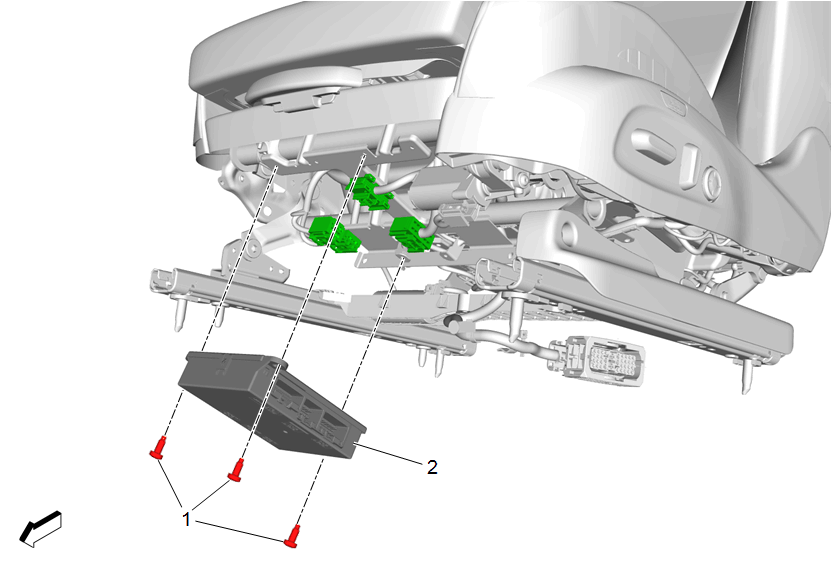

Callout	Component Name
Preliminary Procedure  Front Seat Removal and Installation
1	Driver Seat Adjuster Memory Bolt (Qty: 3) CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Driver or Passenger Seat Adjuster Memory Module Procedure  Disconnect the electrical connector.
