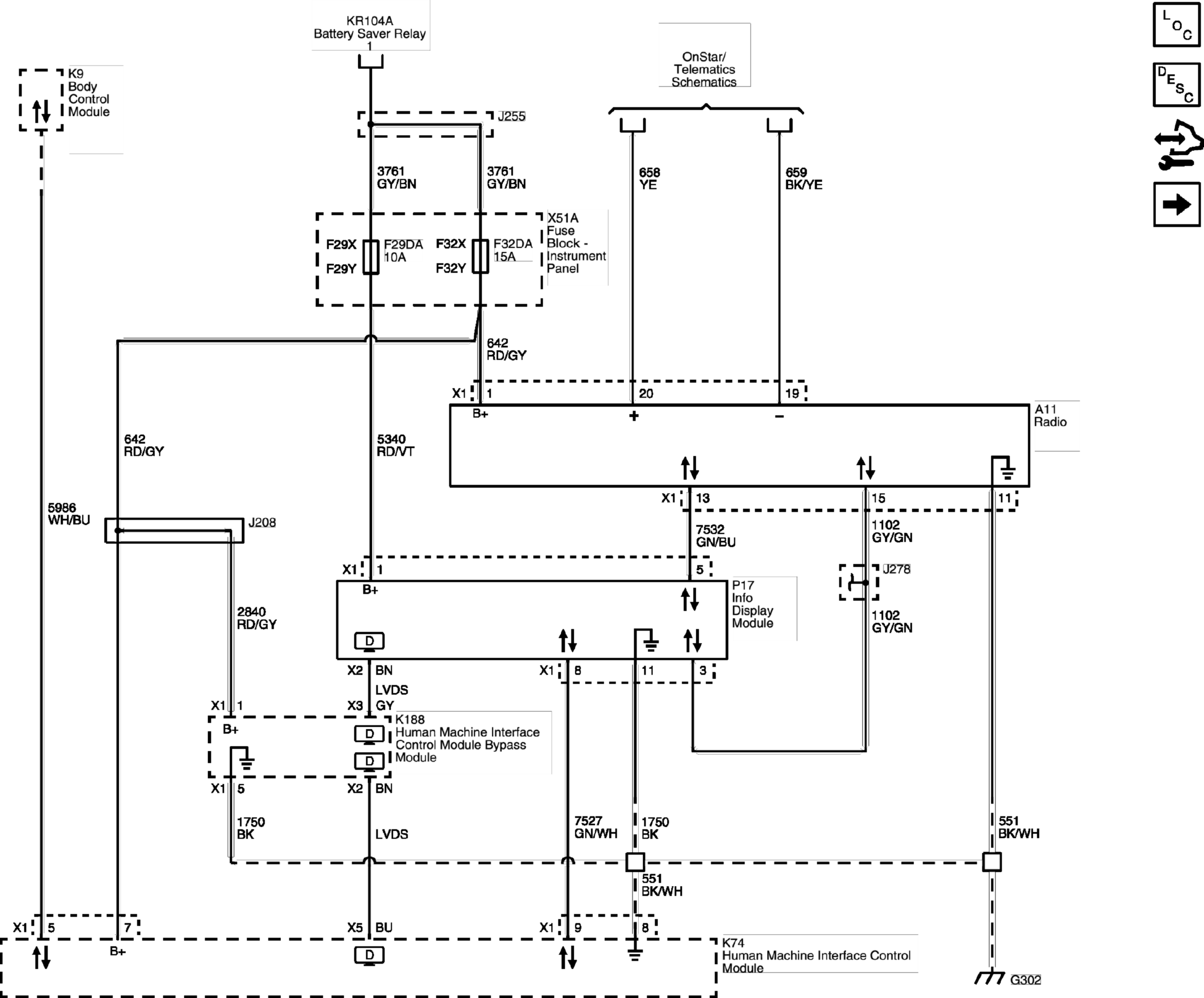

Power, Ground, Serial Data, Info Display, Human Machine Interface Module Bypass Module, and Human Machine Interface Module (Buick)

GM5282403Courtesy of GENERAL MOTORS COMPANY
