Door Lock Switch Replacement - Driver Side (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door armrest switch mount plate driver side. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Chevrolet) .

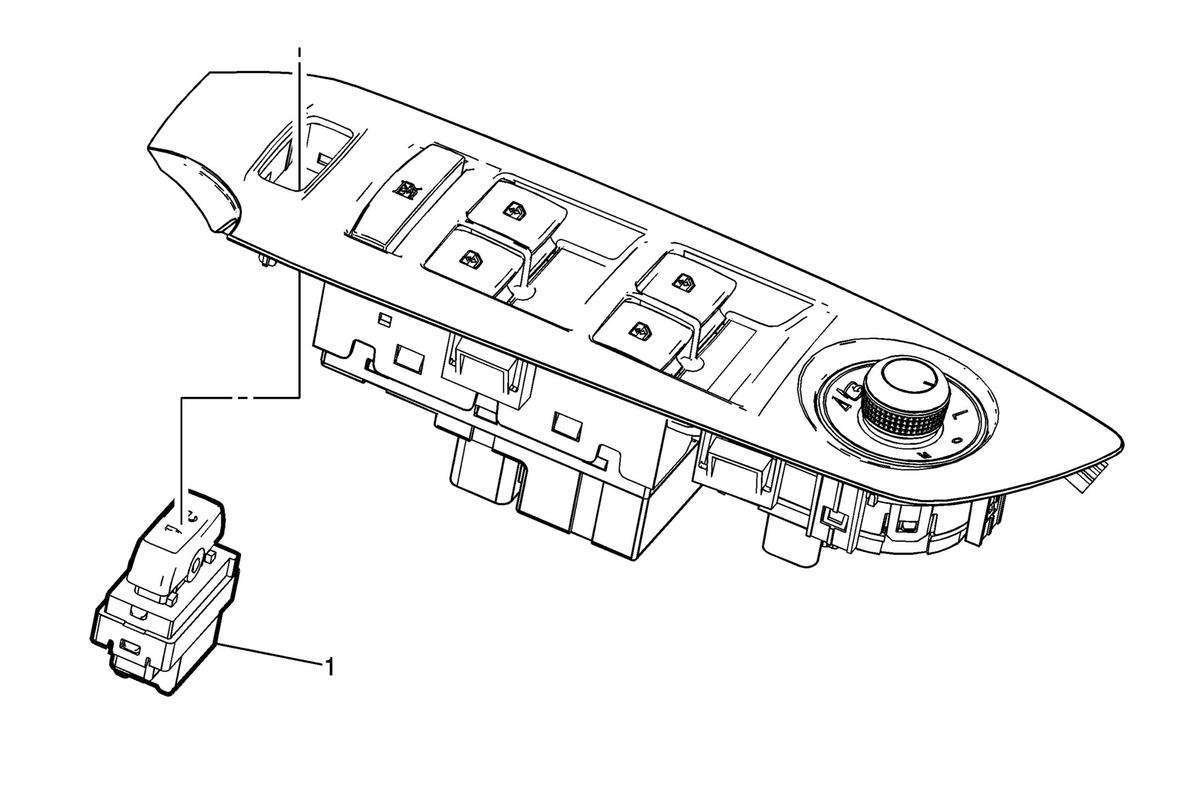

1	Door Lock Switch Driver Side Assembly Procedure Release tabs on switch to remove from front side door armrest switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the front side door armrest switch mount plate driver side. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Chevrolet) .

Door Lock Switch Driver Side Assembly

Procedure

Release tabs on switch to remove from front side door armrest switch mount plate.
Refer to Control Module References for programming and set up procedures.
