Front Side Door Lock Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

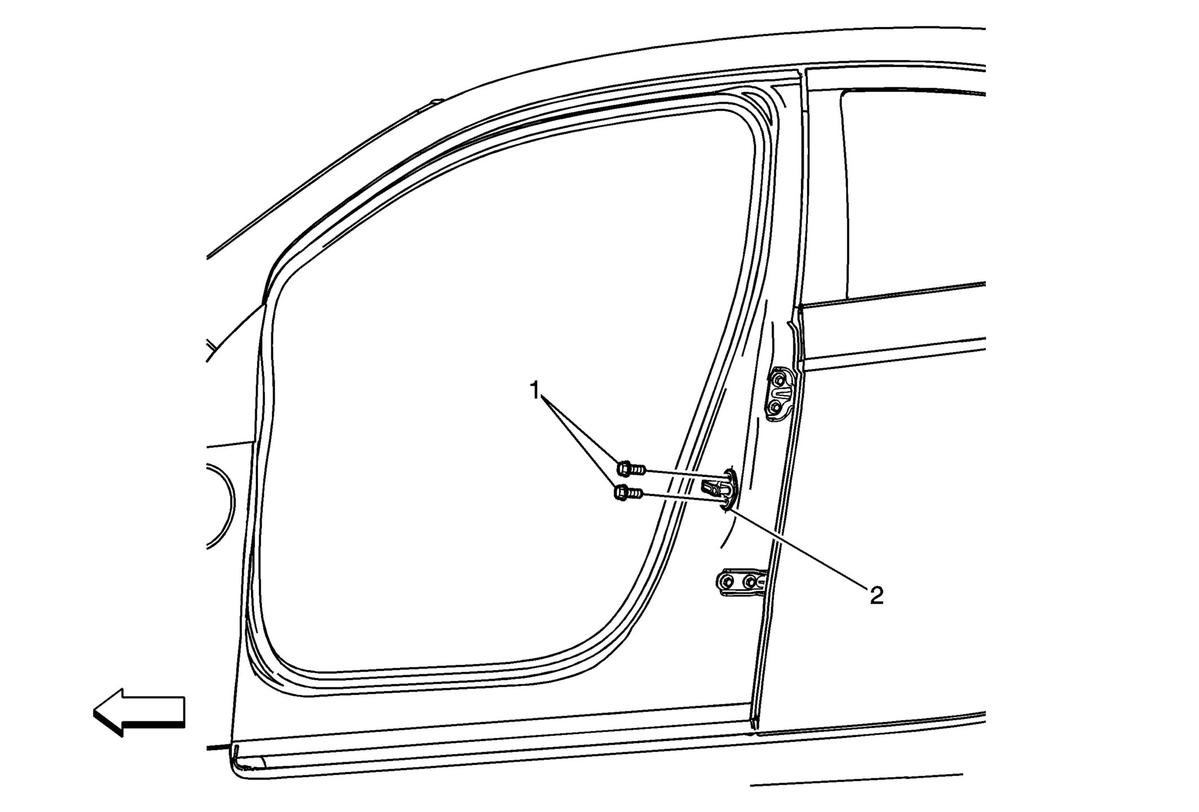

Callout	Component Name
1	Front Door Lock Striker Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure  Unclip the door lock striker cover from the striker to expose the screws, if equipped. Tighten  22 N.m (16 lb ft)
2	Front Door Lock Striker Procedure  Ensure the alignment of the striker. Refer to Front Side Door Lock Striker Adjustment .
