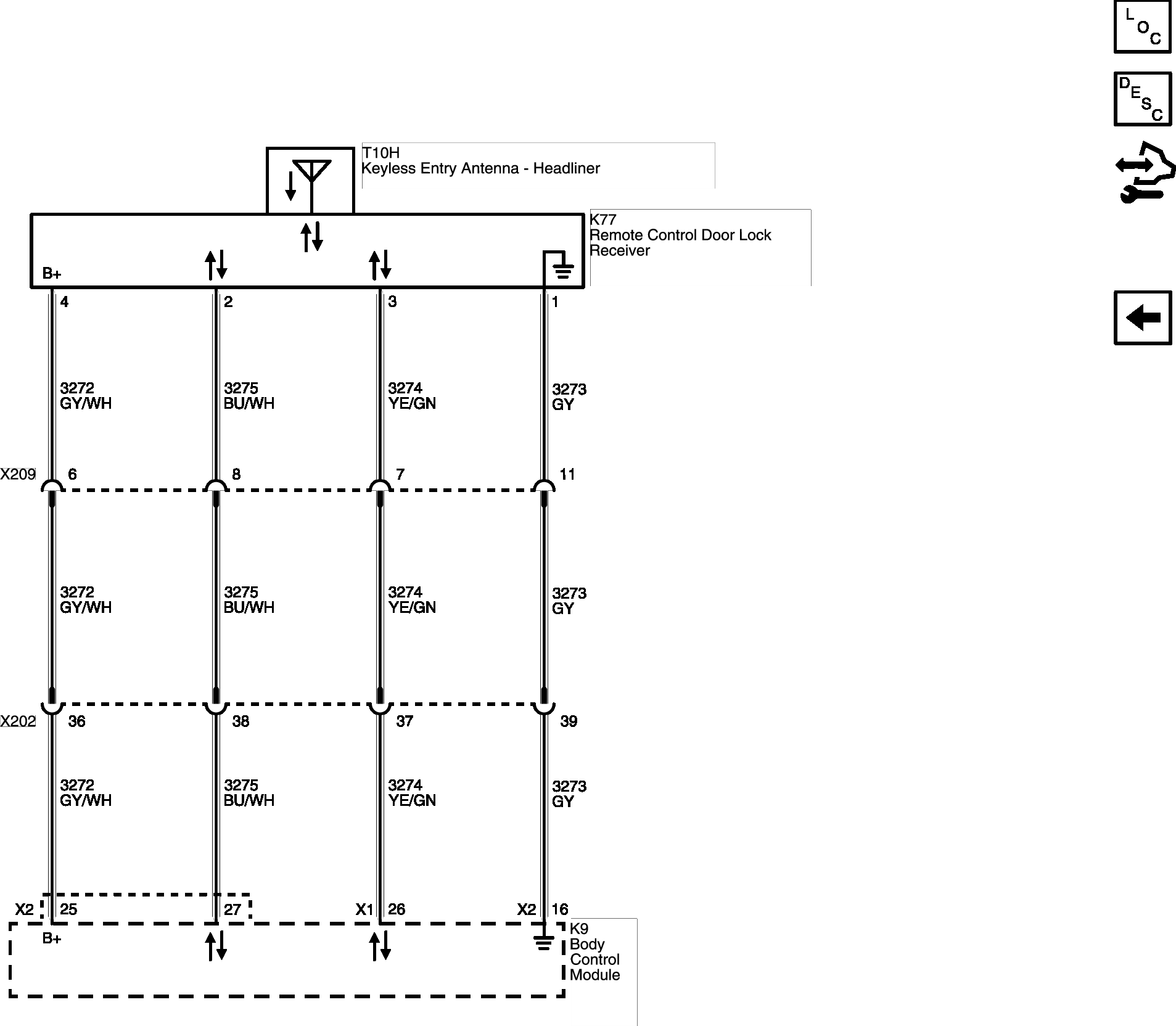

Home › Buick › 2020 › Encore Base › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Schematic Wiring Diagrams › Remote Function Wiring Schematics (Chevrolet) › Keyless Entry (Chevrolet)
