Outside Rearview Mirror Bracket Cover Replacement

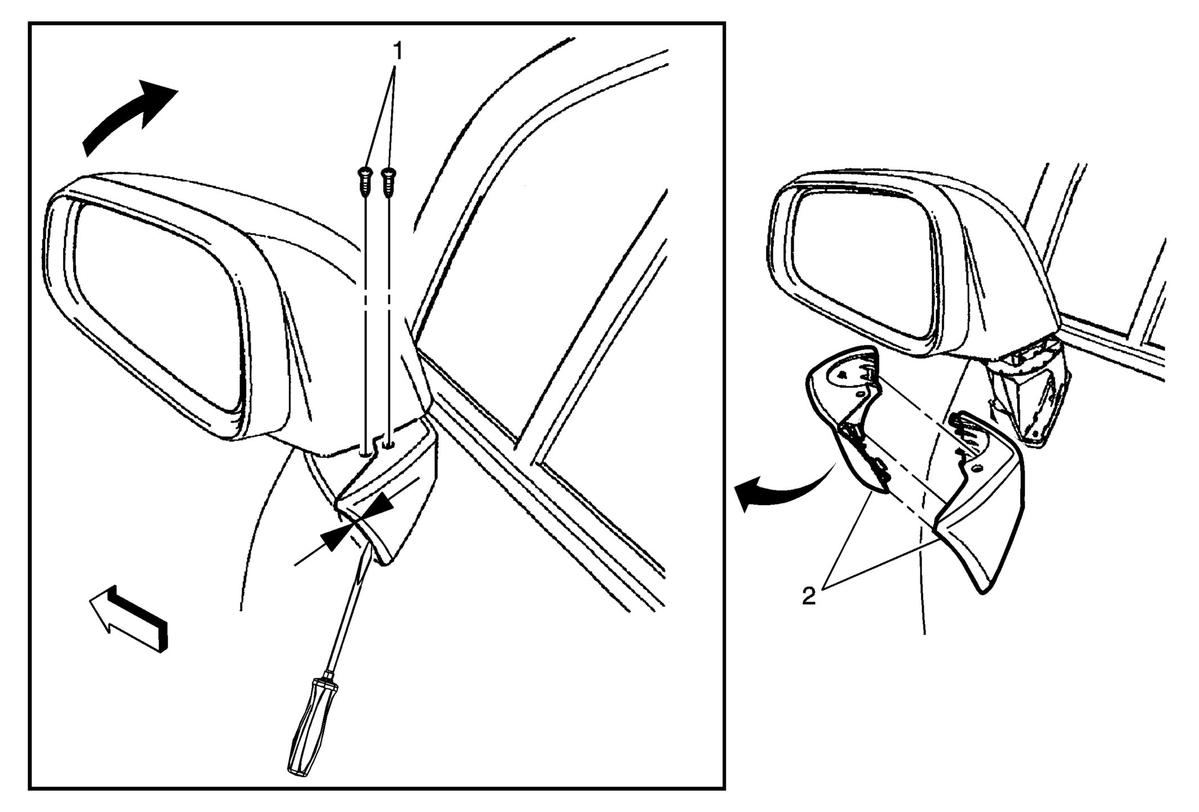

GM2780165Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Outside Rearview Mirror Bracket Cover Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Rotate the mirror top part of the assembly to the forward direction to access the mirror bracket cover screws.
  2. Remove the screws to open the bracket cover.
2 Outside Rearview Mirror Bracket Cover

Procedure

  1. Using the appropriate tool, insert the tool to the front edge of the bracket cover and turn in a clockwise direction releasing the bracket cover from the base of the outside rearview mirror.
  2. When installing the bracket covers align the tabs and press then it together.
