Outside Rearview Mirror Glass Replacement

Courtesy of GENERAL MOTORS COMPANY

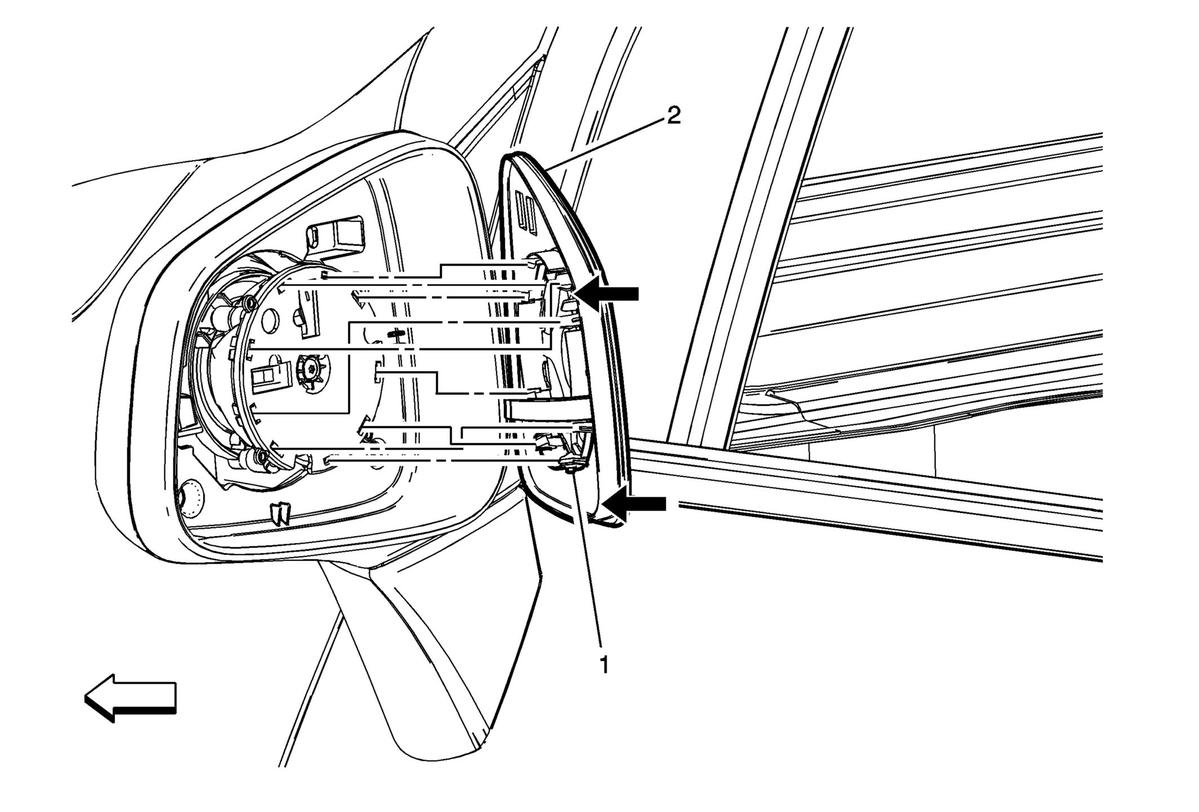

Callout	Component Name
1	Outside Rearview Mirror Glass Retainers (Qty: 9) WARNING: Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury. Procedure Place masking tape over the mirror glass and around the mirror housing. Carefully push the outside rearview mirror glass upward and into the right corner of the mirror housing, allowing access to the bottom edge. Grasp the bottom edge of the mirror glass firmly, lift upward and pull rearward until the mirror glass releases the motor ring. Disconnected the connectors from the back of the mirror glass.
2	Outside Rearview Mirror Glass Procedure Place the mirror glass on the lower motor ring retainers. Place one hand on the back of the mirror housing, using the flat palm of the other hand press inward locking the mirror glass to the motor ring.

Callout

Component Name

Outside Rearview Mirror Glass Retainers (Qty: 9)

WARNING:

Approved safety glasses and gloves should be worn when performing this procedure to reduce the chance of personal injury.

Procedure

Place masking tape over the mirror glass and around the mirror housing.
Carefully push the outside rearview mirror glass upward and into the right corner of the mirror housing, allowing access to the bottom edge.
Grasp the bottom edge of the mirror glass firmly, lift upward and pull rearward until the mirror glass releases the motor ring.
Disconnected the connectors from the back of the mirror glass.

Outside Rearview Mirror Glass

Procedure

Place the mirror glass on the lower motor ring retainers.
Place one hand on the back of the mirror housing, using the flat palm of the other hand press inward locking the mirror glass to the motor ring.
