Camshaft Position Sensor Replacement - Intake

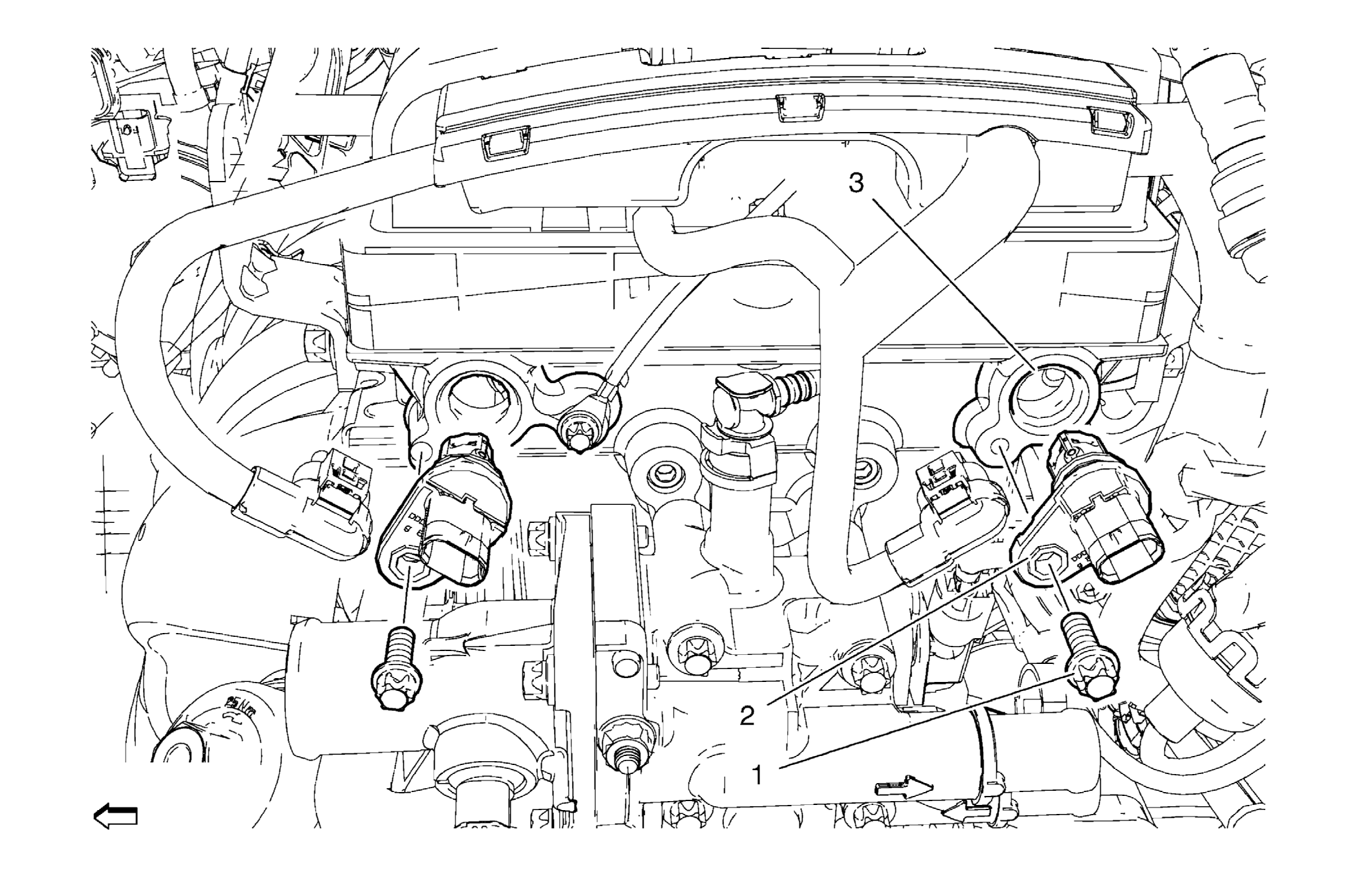

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 6 N.m (53 lb in) |
| 2 | Camshaft Position Sensor Procedure Disconnect electrical connectors as needed.
NOTE:
Replace only the exhaust or the Intake camshaft position sensor as necessary. |
| 3 | Camshaft Position Sensor Seal
NOTE:
Always install a NEW seal. |
