Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

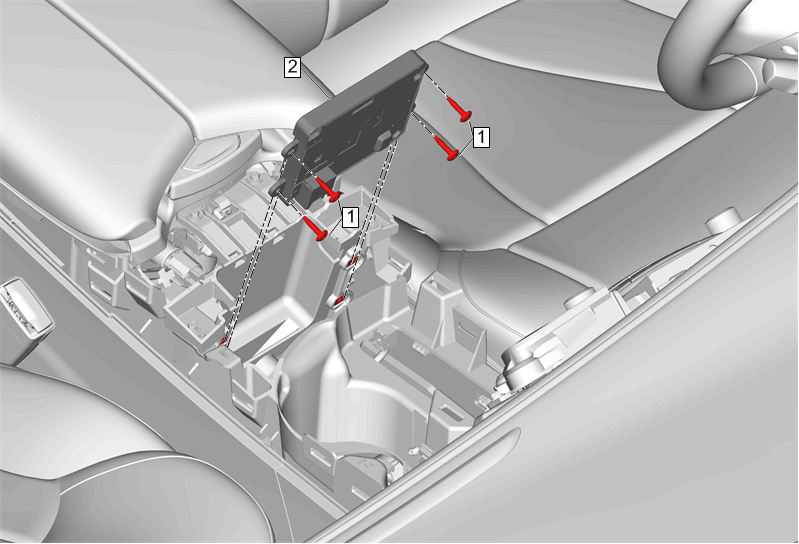

Callout	Component Name
Preliminary Procedure  Front Floor Console Housing Replacement
1	Wireless Charging System Module Bolt [4x] CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Wireless Charging System Module Procedure  Disconnect the electrical connector.
