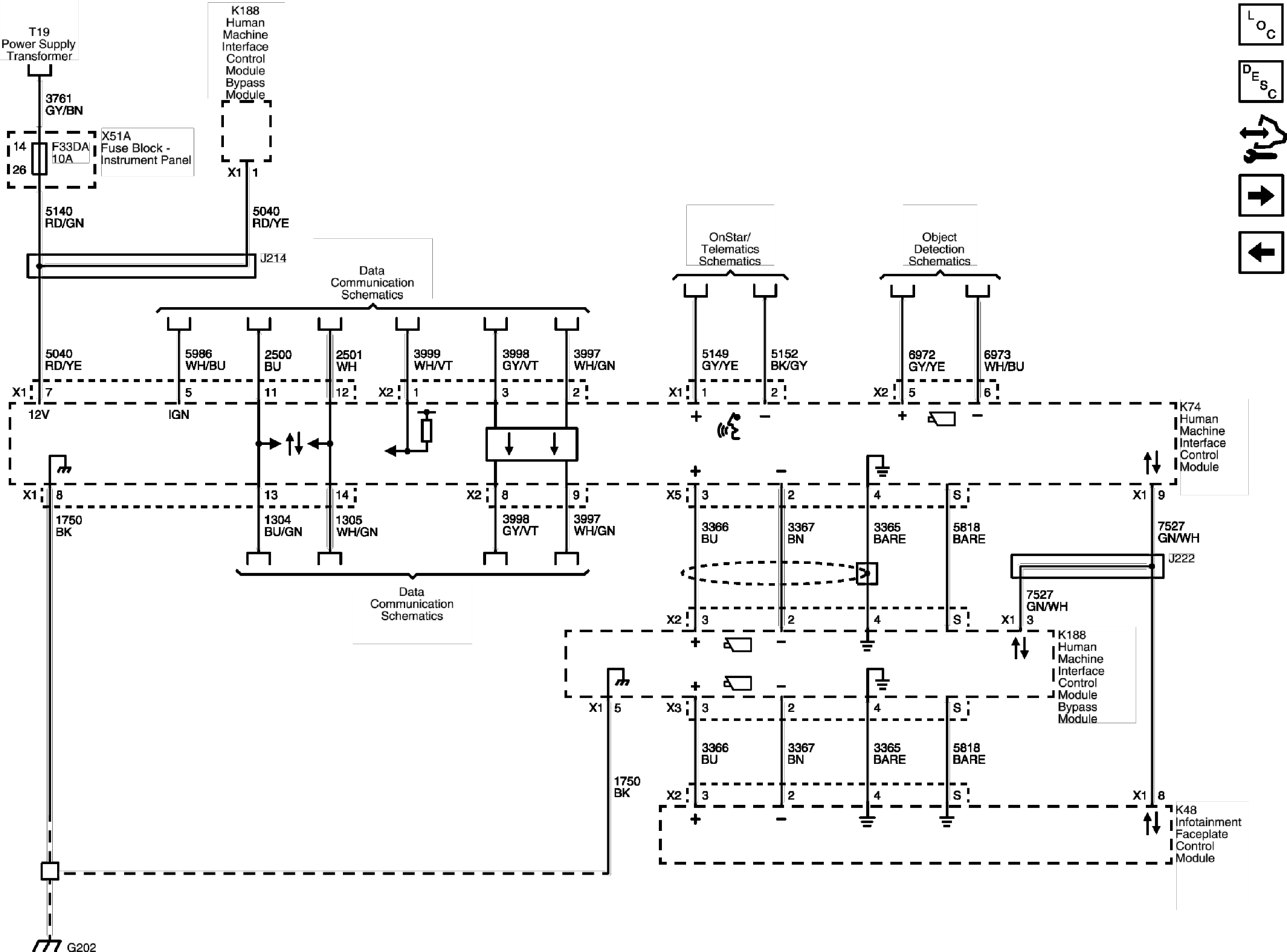

Human Machine Interface Control Module - Power, Ground, Serial Data, and Functions
Human Machine Interface Control Module - Power, Ground, Serial Data, and Functions
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
