Schematic Wiring Diagrams
›
OnStar/Telematics Wiring Schematics
›

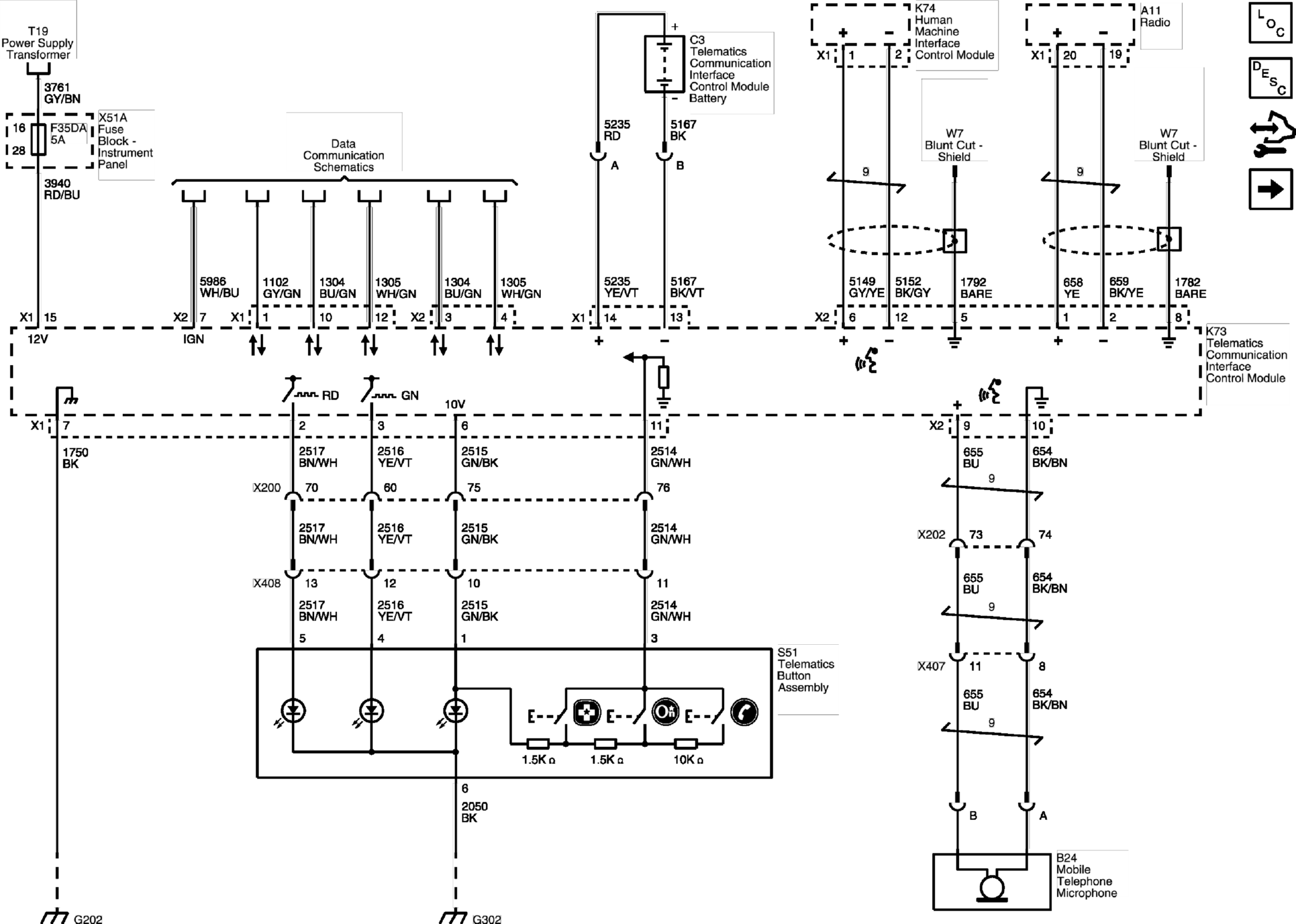

Telematics Communication Interface Control Module
Telematics Communication Interface Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
