Radio/Navigation System Wiring Schematics
›

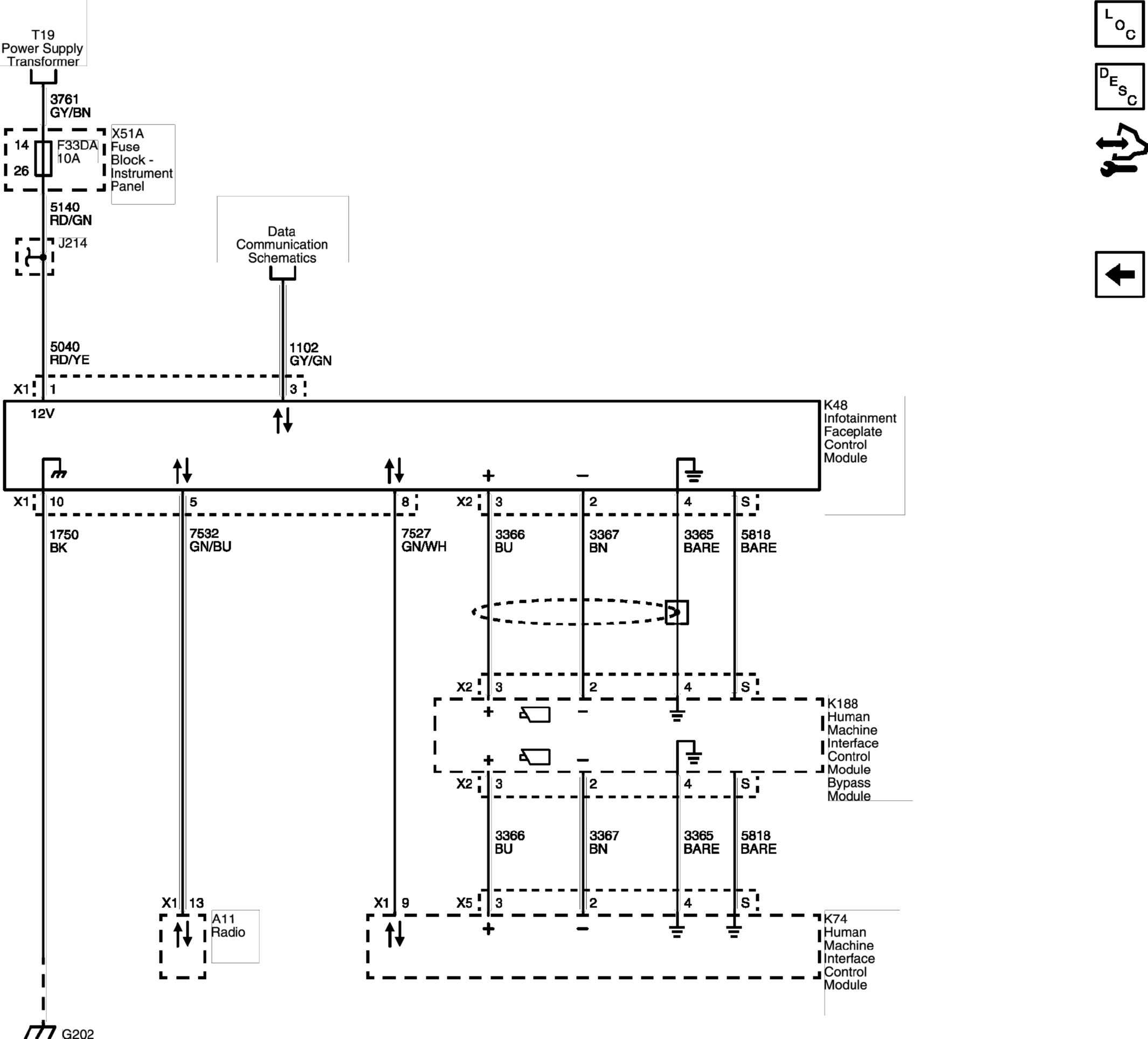

Infotainment Faceplate Control Module
Infotainment Faceplate Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
