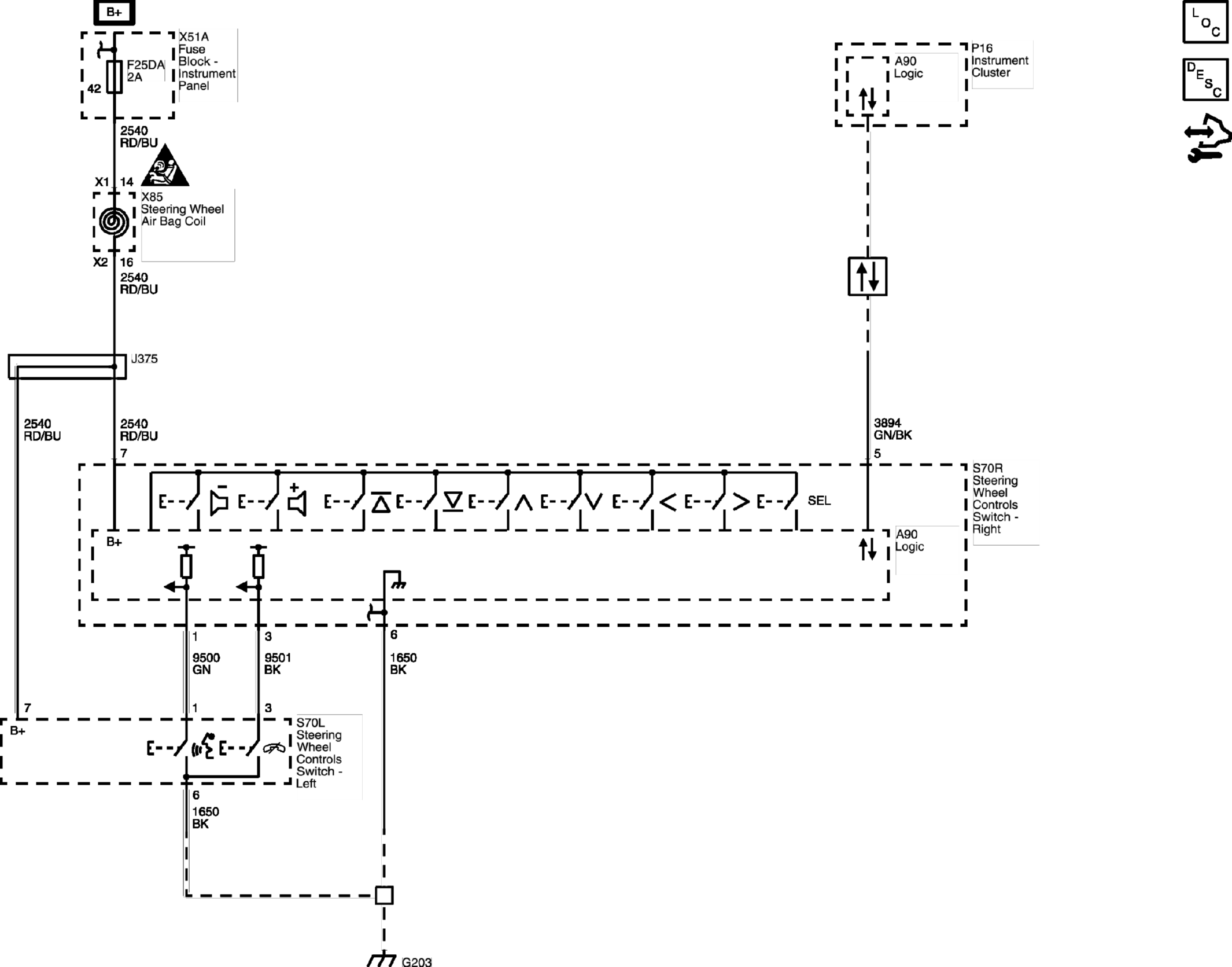

Steering Wheel Secondary/Configurable Control Wiring Schematics
›
Steering Wheel Secondary/Configurable Control
Steering Wheel Secondary/Configurable Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
