Liftgate Side Sensor Replacement

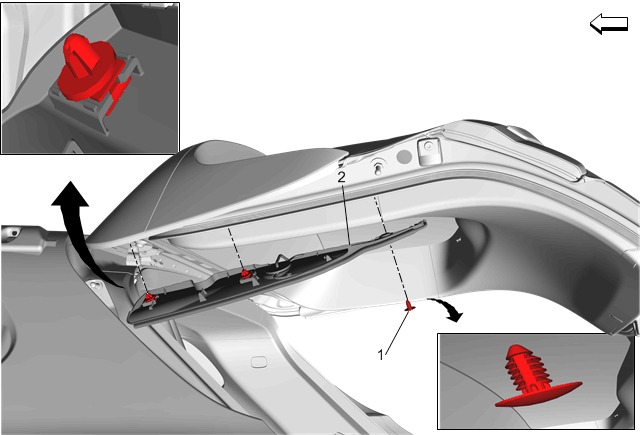

GM3903543Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Side Sensor Retainer
2 Liftgate Side Sensor

Procedure

  1. Using a trim type tool release the 2 remaining retainers.
  2. Disconnect the electrical connector.
