Home › Buick › 2020 › Envision Base › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

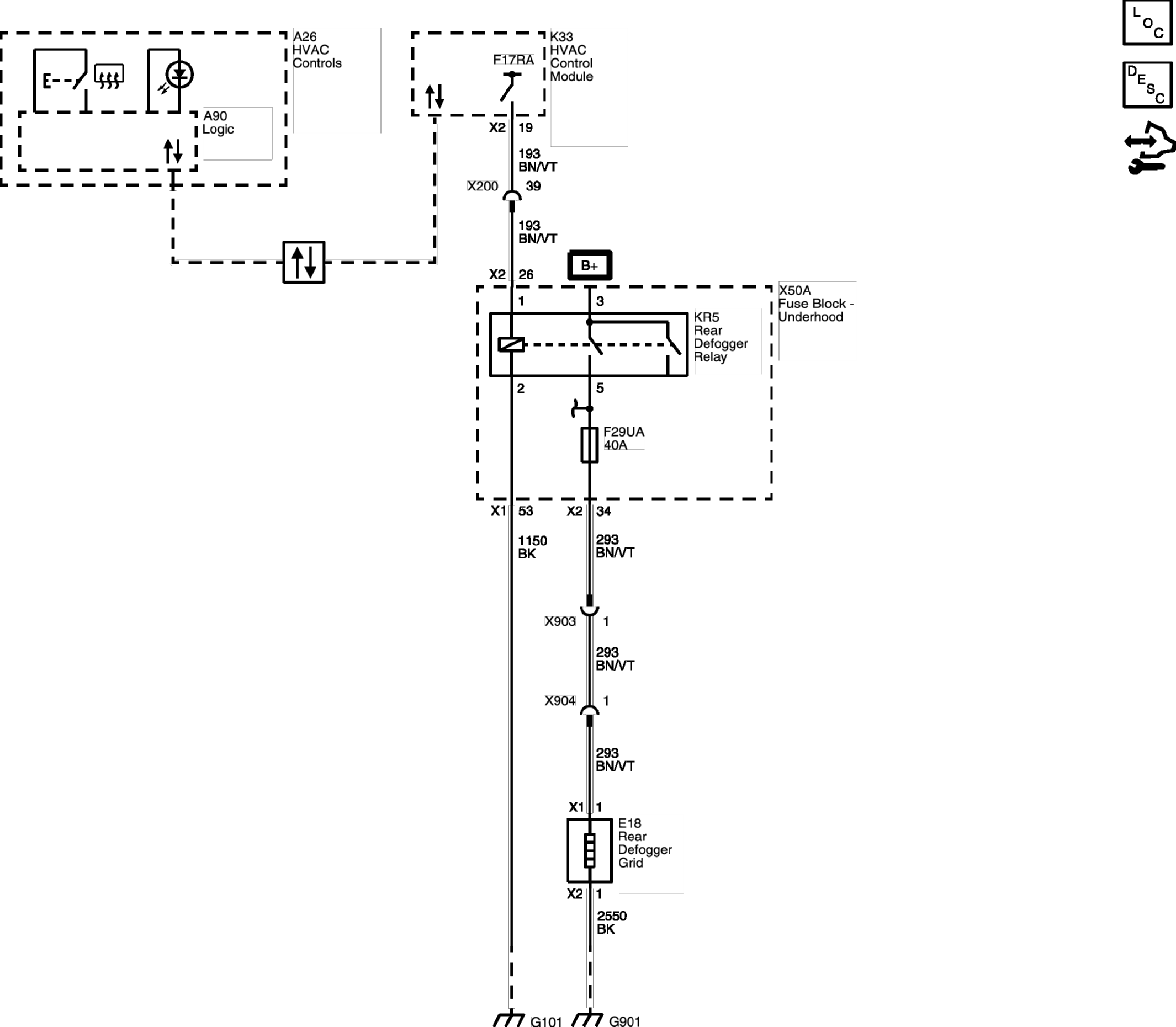

Defogger Wiring Schematics: Defogger

GM5156055Courtesy of GENERAL MOTORS COMPANY
