Blower Motor Control Module Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

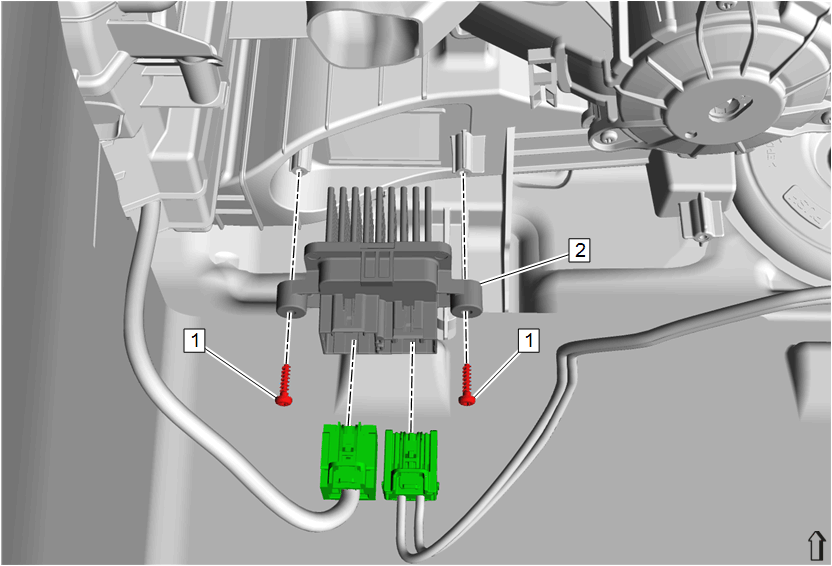

Callout	Component Name
Preliminary Procedures BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG) Instrument Panel Lower Trim Panel Insulator Replacement
1	Blower Motor Control Module Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Blower Motor Control Module Procedure Disconnect the electrical connectors. Control Module References - Programming and Setup

Callout

Component Name

Preliminary Procedures

BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG)
Instrument Panel Lower Trim Panel Insulator Replacement

Blower Motor Control Module Bolt [2x]

CAUTION:

Fastener Caution

Tighten
2.5 N.m (22 lb in)

Blower Motor Control Module

Procedure

Disconnect the electrical connectors.
Control Module References - Programming and Setup
