Driver Information Display Replacement
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

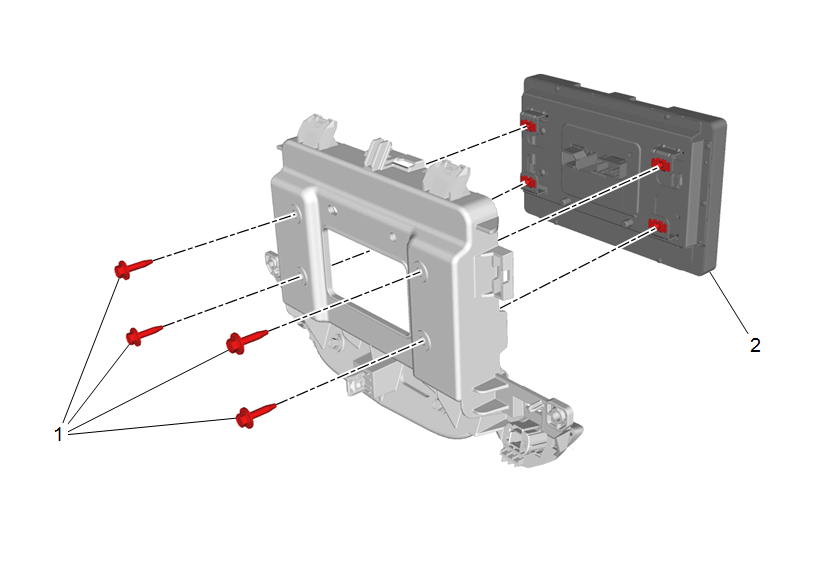

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedures Radio Control Assembly Replacement (IOB) Radio Control Assembly Replacement (IO5, IO6) |
|
| 1 | Driver Information Display Bolt [4x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Driver Information Display |
