Installation Procedure
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

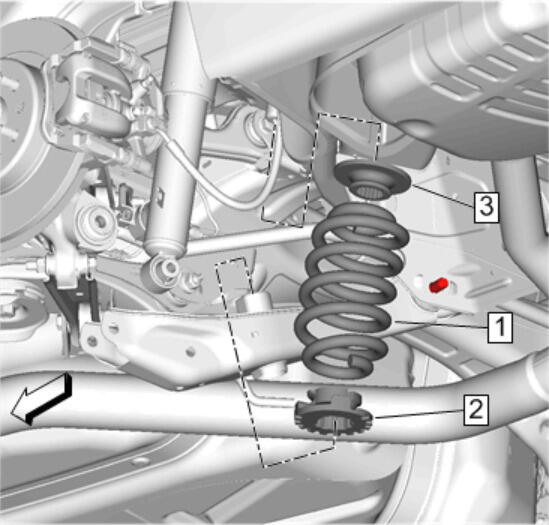

Rear Coil Spring Insulator(3) - Install
- Rear Coil Spring Lower Insulator(2) - Install
- Rear Coil Spring(1) - Install

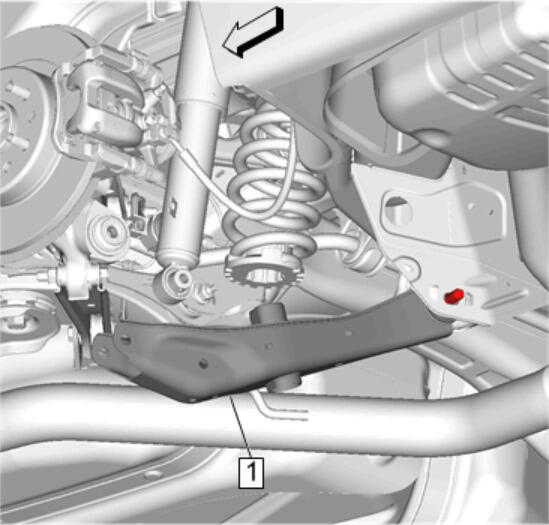

Raise the rear suspension lower control arm (1) back into position.
- CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

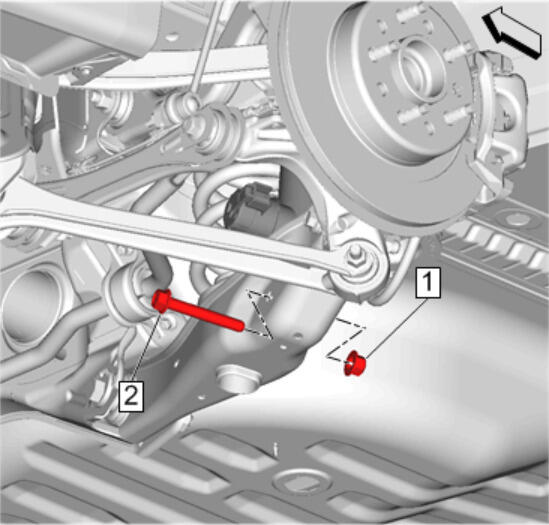

Rear Suspension Lower Control Arm Outer Bolt(2) - Install NEW
- Rear Suspension Lower Control Arm Outer Nut(1) - Install - Lower Control Arm Replacement (FWD) Lower Control Arm Replacement (AWD)
- Rear Suspension Lower Control Arm Inner Nut(1) - Tighten - Lower Control Arm Replacement (FWD) Lower Control Arm Replacement (AWD)

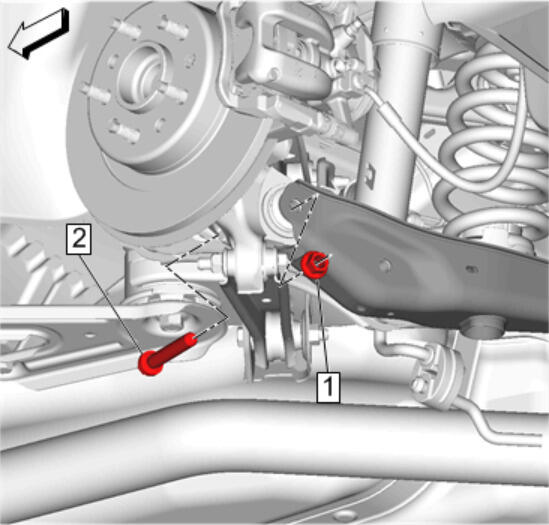

Rear Shock Absorber Bolt(2) - Install NEW
- Rear Shock Absorber Nut(1) - Install - Shock Absorber Replacement (GNC) Shock Absorber Replacement (GNQ)
- { If equipped }Wiring Harness@Rear Suspension Lower Control Arm - Install
- Remove the support from the rear suspension lower control arm.
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation
- Remove the support and lower the vehicle.
- Verify the rear camber specifications and adjust as necessary. Rear Camber Adjustment (GNQ)Rear Camber Adjustment (GNC)
