Section 89 (Keyless Entry System And Remote Functions)
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›

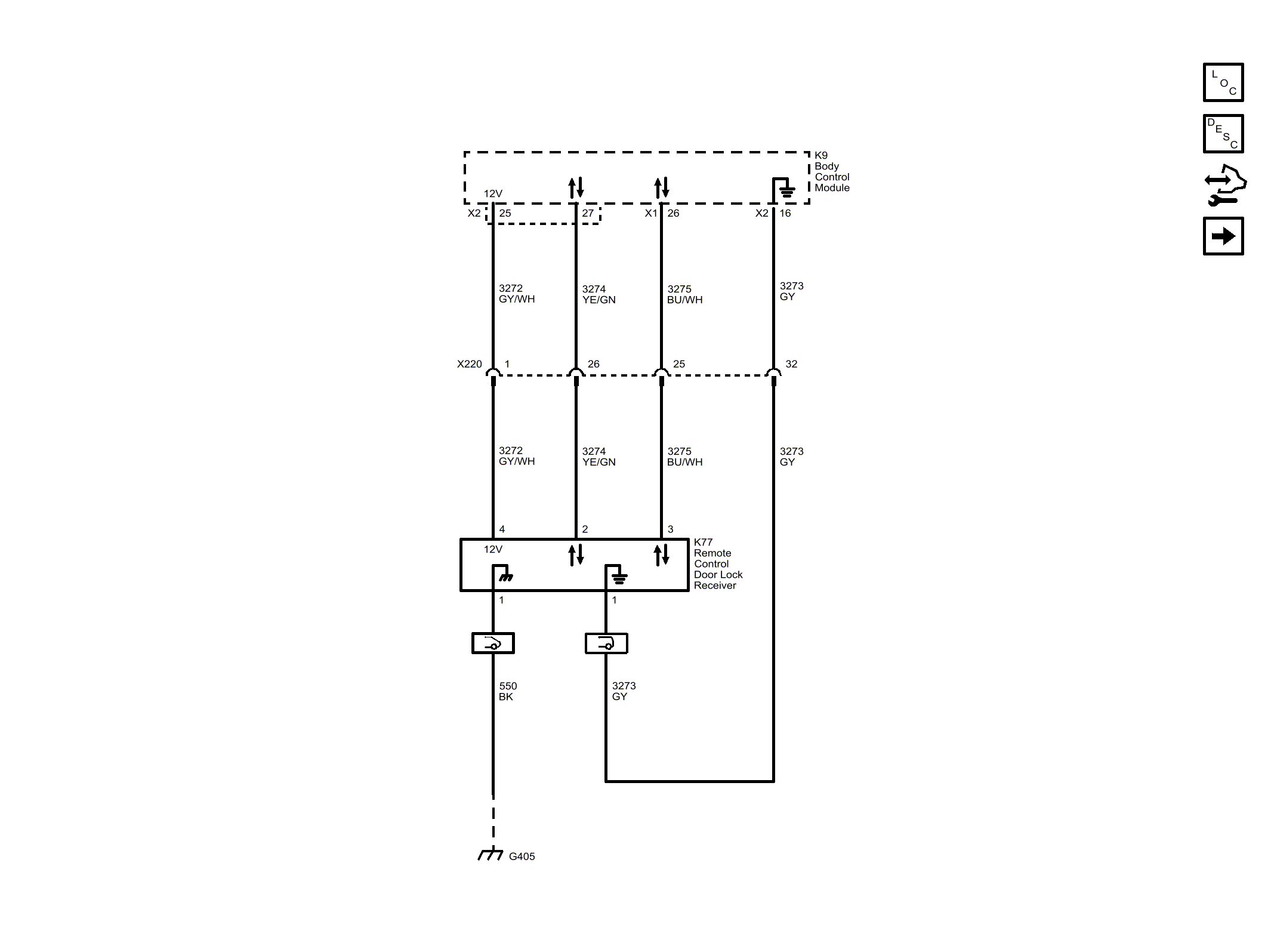

Keyless Entry - Active
Keyless Entry - Active
WARNING:
This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
