Roof Components

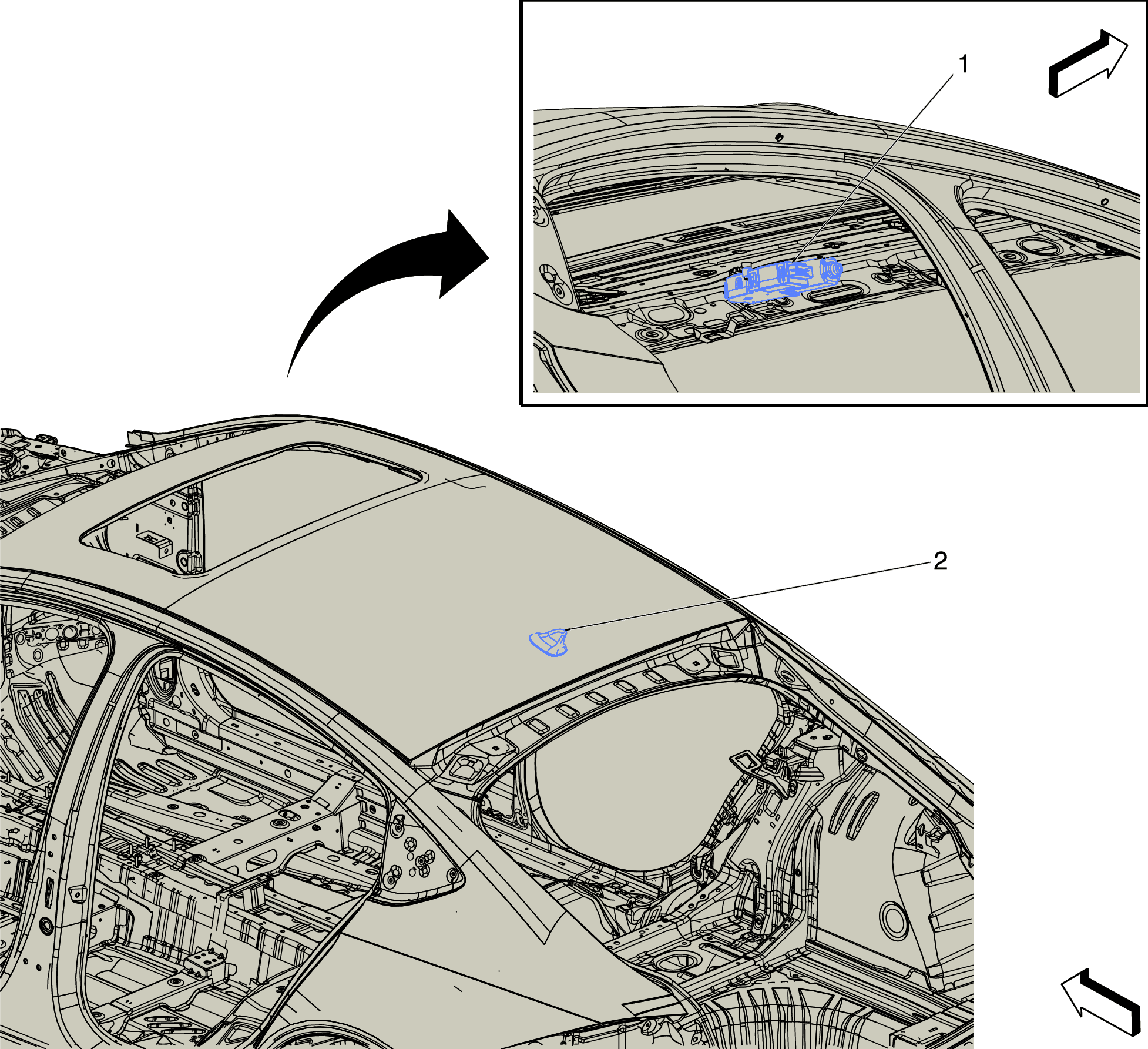

GM4623732Courtesy of GENERAL MOTORS COMPANY
Roof Components

Component Name Callout
K61 Sunroof Control Module (CF5) K61 Sunroof Control Module (C3U) , or K61 Sunroof Control Module (CF5) 1
T2RR Antenna - Roof Rear T2RR Antenna - Roof Rear 2
